Wide Range of Applications: Widely used in the processing of urban construction waste, road and bridge construction, metallurgy, energy, mining, and the production of sand and gravel for high-speed rail projects, among other fields.

01 Integrated Structure

The J11D integrates three functions: feeding, pre-scalping and crushing. It achieves immediate commissioning on-site and eliminates disassembly requirements for relocation.

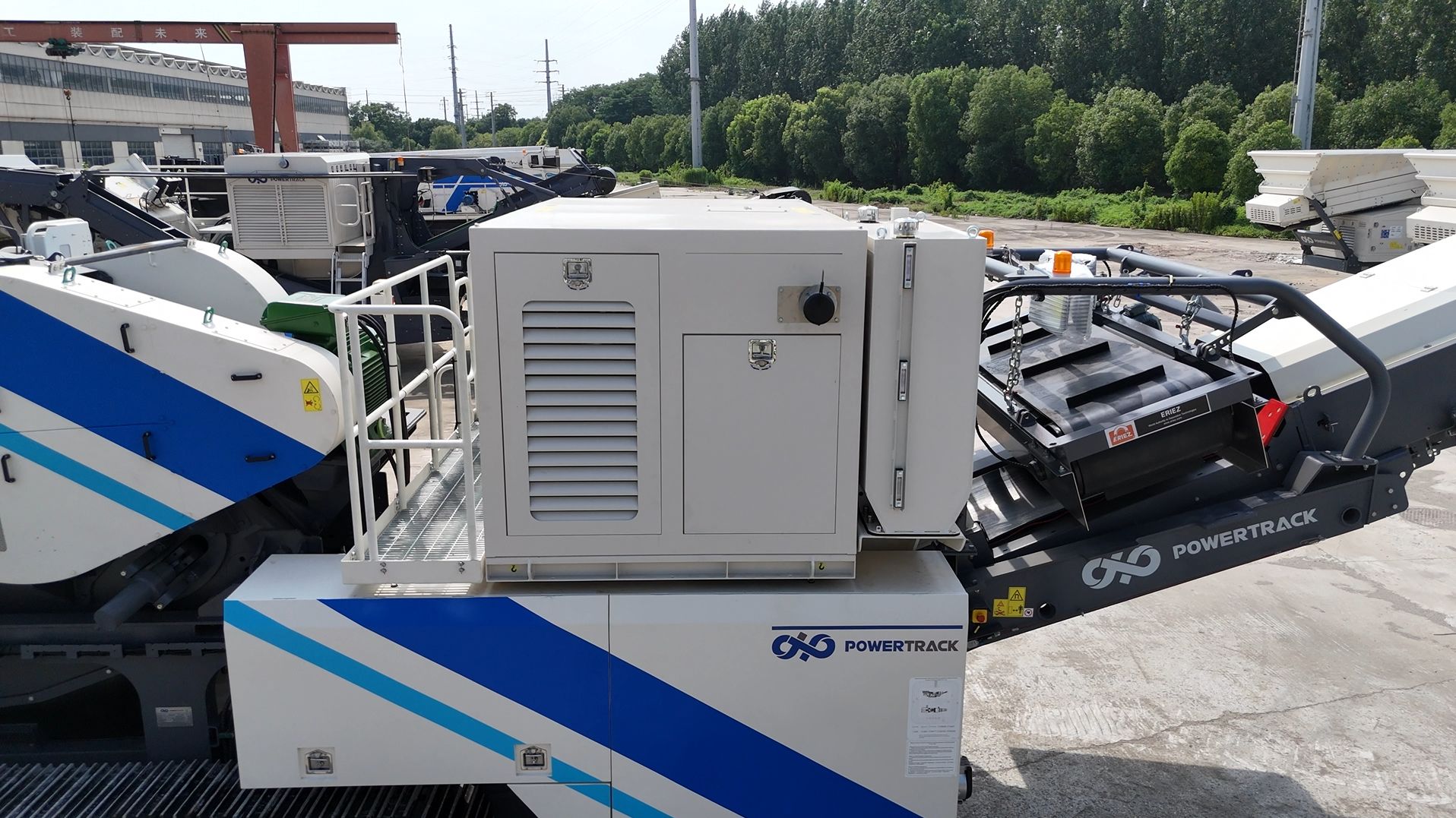

02 Dual power supply

The engine directly drives the generator and hydraulic pump, resulting in a compact and lightweight power system.

It features a dual-power mode combining diesel and external power, allowing for flexible switching based on the construction site conditions.

• off-grid conditions

The onboard diesel genset provides stable power and is not limited by on-site electrical infrastructure.

• grid power is available

The system switches to electricity, significantly reducing energy costs.

03 Variable-frequency feeding system

The J-11D is equipped with a variable-frequency feeding system,which can adjust the feeding rate according to hardness and particle size of materials.

The level sensor monitors crusher cavity level and optimizes the feeding, effectively avoiding overload, energy waste caused by idling and extends the service life of the motor and components.

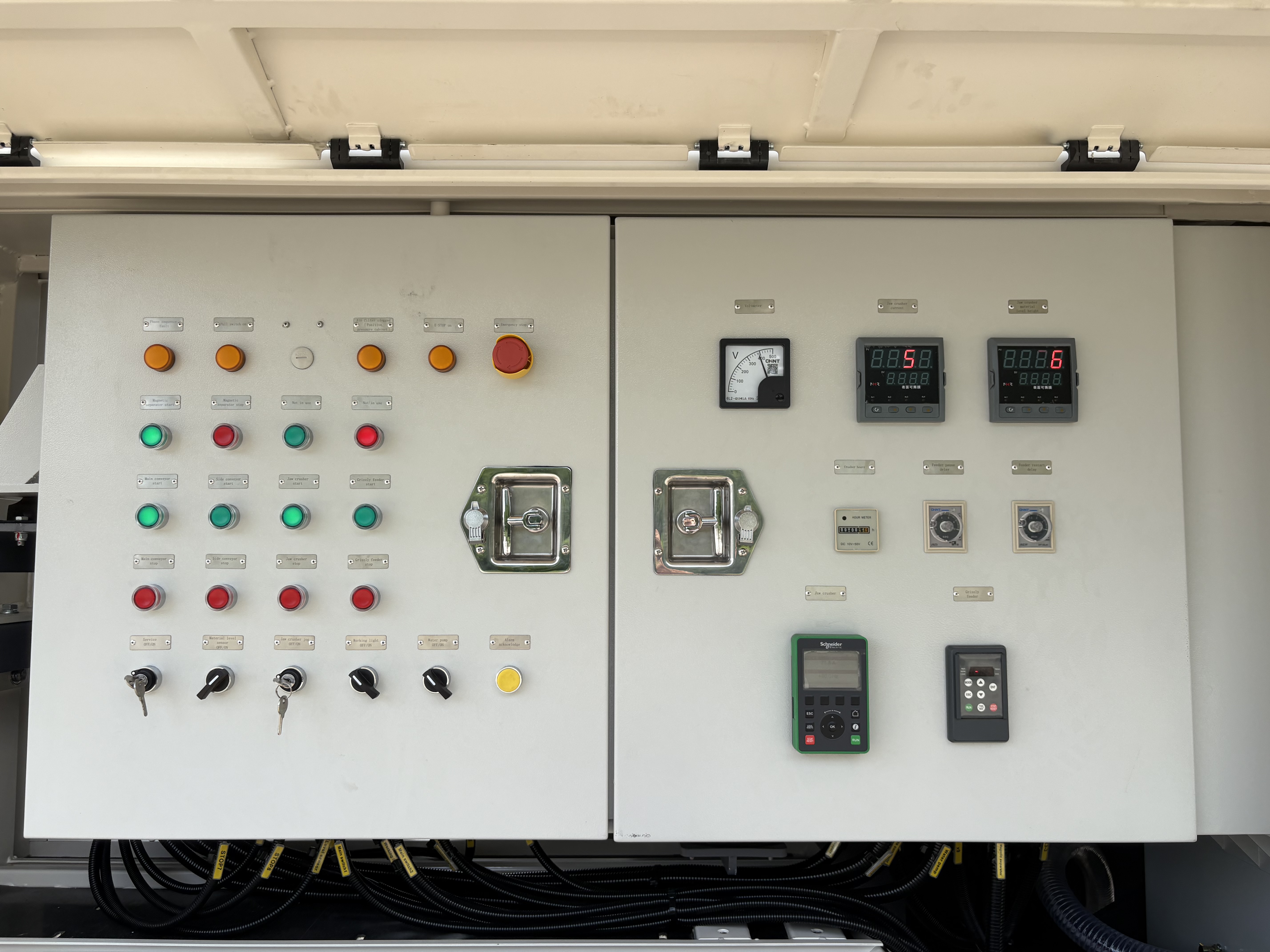

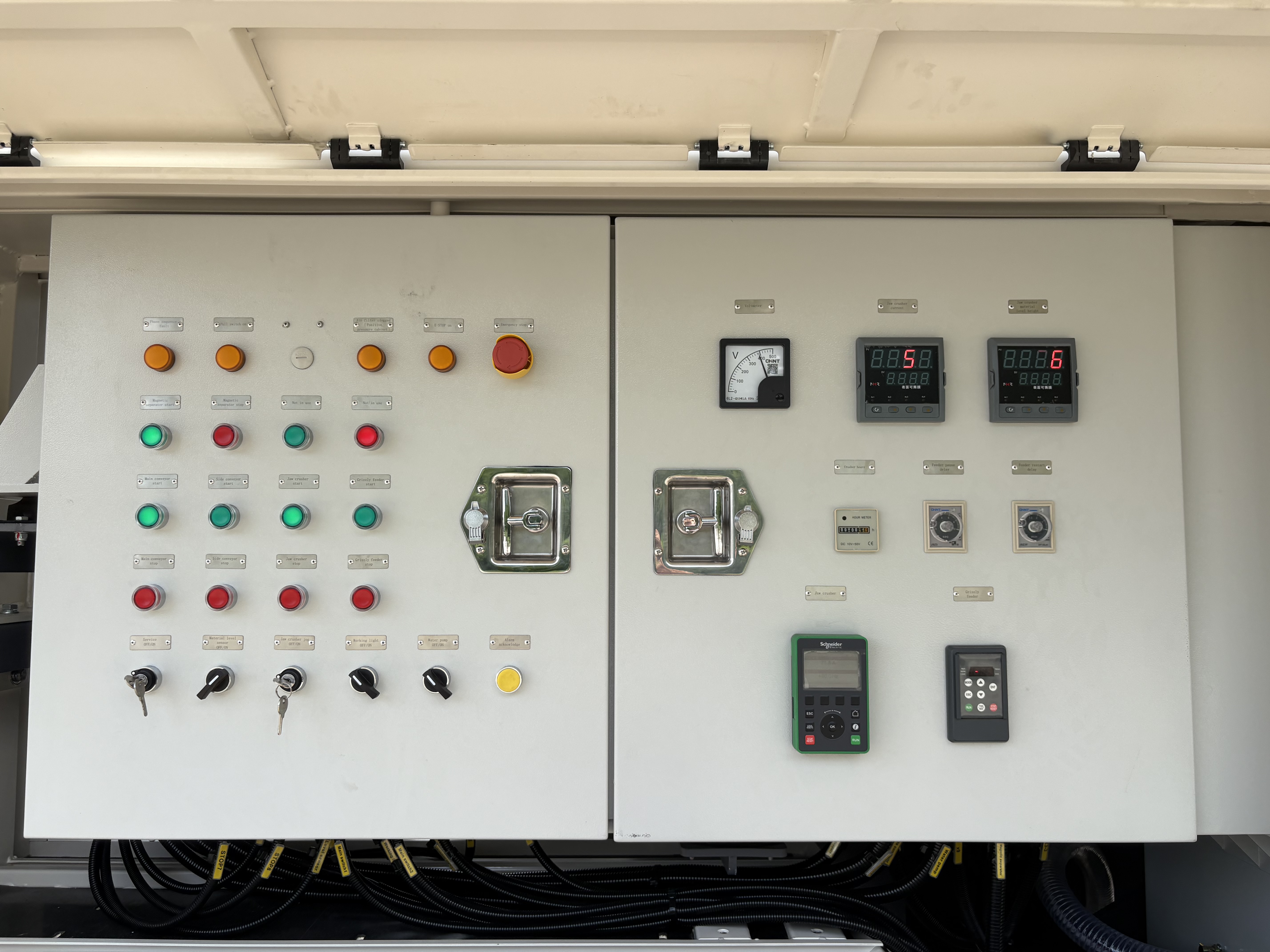

04 Variable-frequency start-up technology

The jaw crusher adopts variable-frequency start-up technology, which reduces the peak start-up current and extends the service life of the motor and components.

At the same time, the main unit is equipped with level sensor that precisely controls the material level, and features an optimized deep-chamber crushing structure that achieves a higher crushing ratio and ensures thorough material crushing.

With its flexible hydraulic CSS adjustment, the J-11D can meet production requirements for end products of various particle sizes.

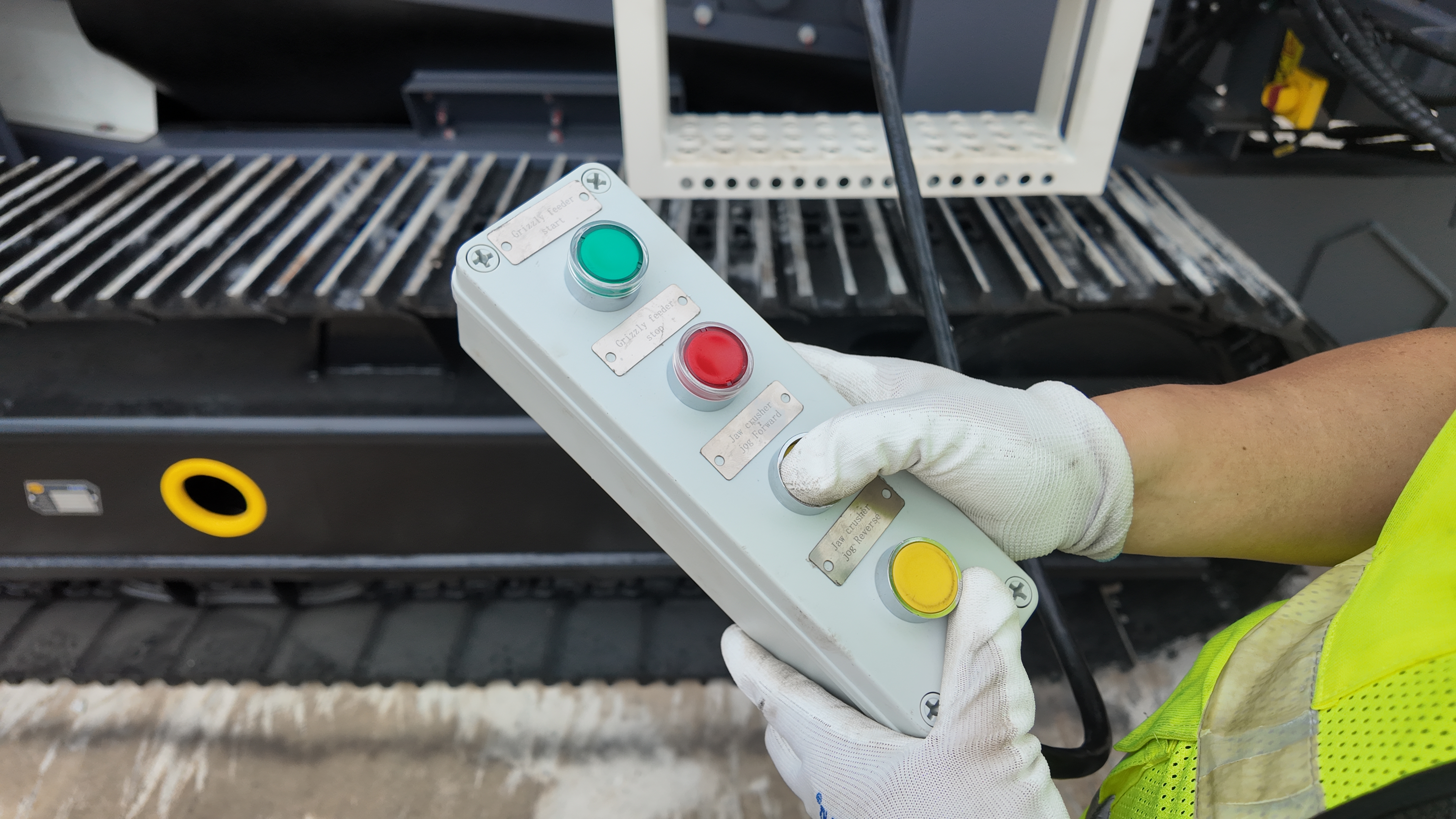

05 An optional reverse function

The crusher of J-11D is available with an optional reverse function. If a blockage occurs, simply press a button to reverse the flow and quickly clear it. This design significantly eliminates safety risks from manual clearnup, reduces downtime and ensures continuous operations.

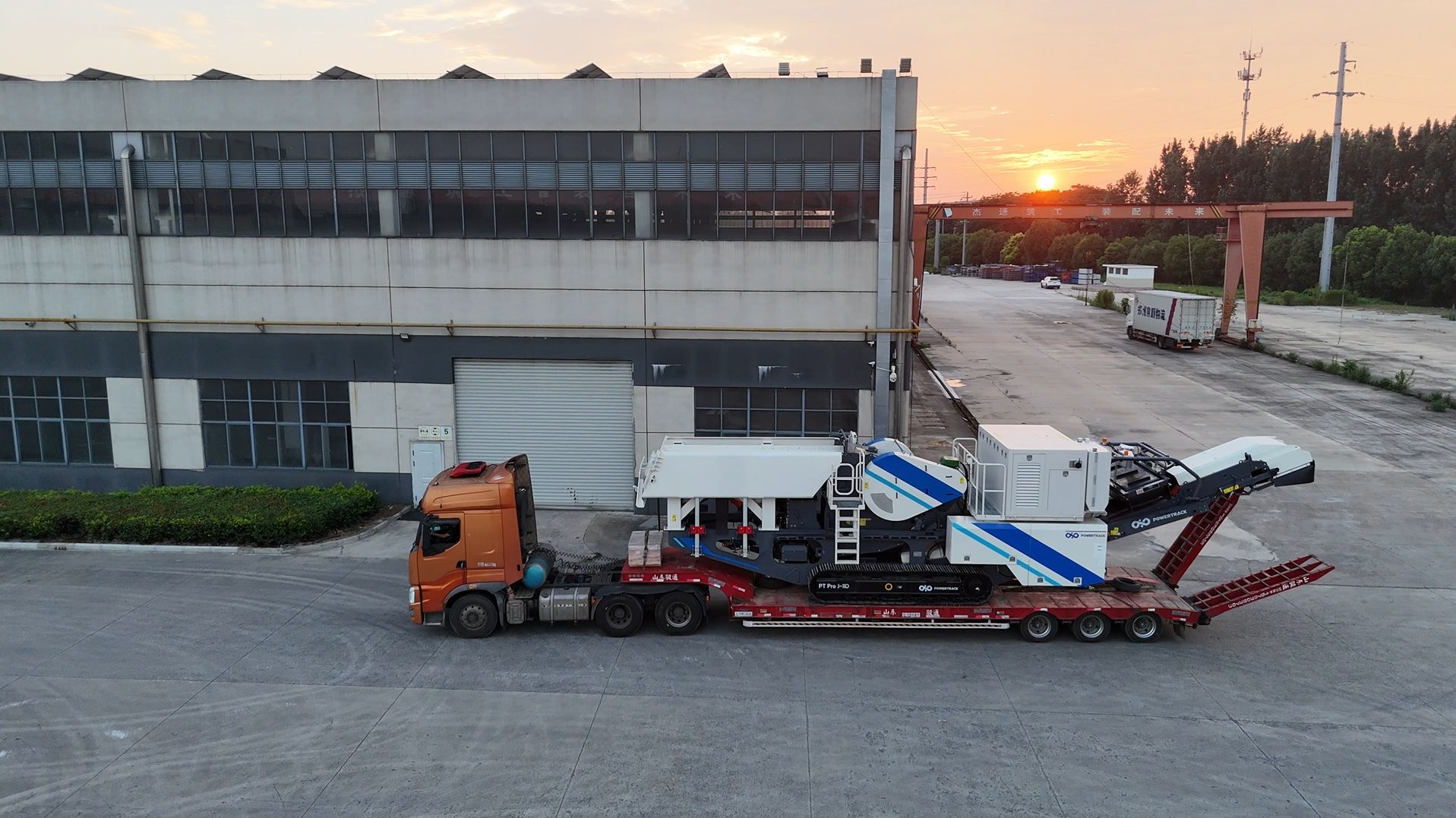

Mobile jaw crushing unit Powertrack PT Pro J-11D

Suitable for primary crushing of all medium to high abrasive materials

Adaptable to Multiple Scenarios, Efficient Rock Breaking
