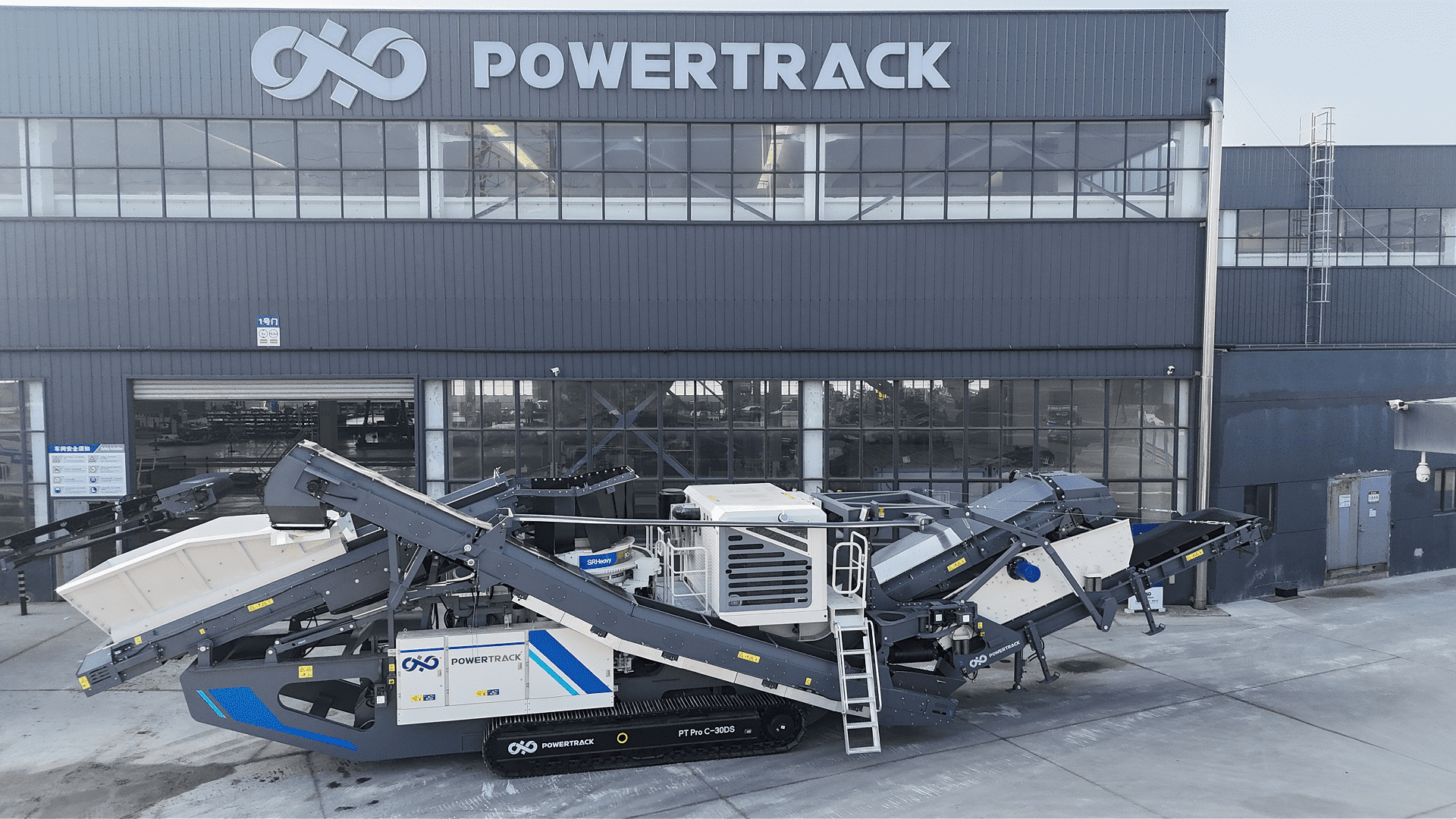

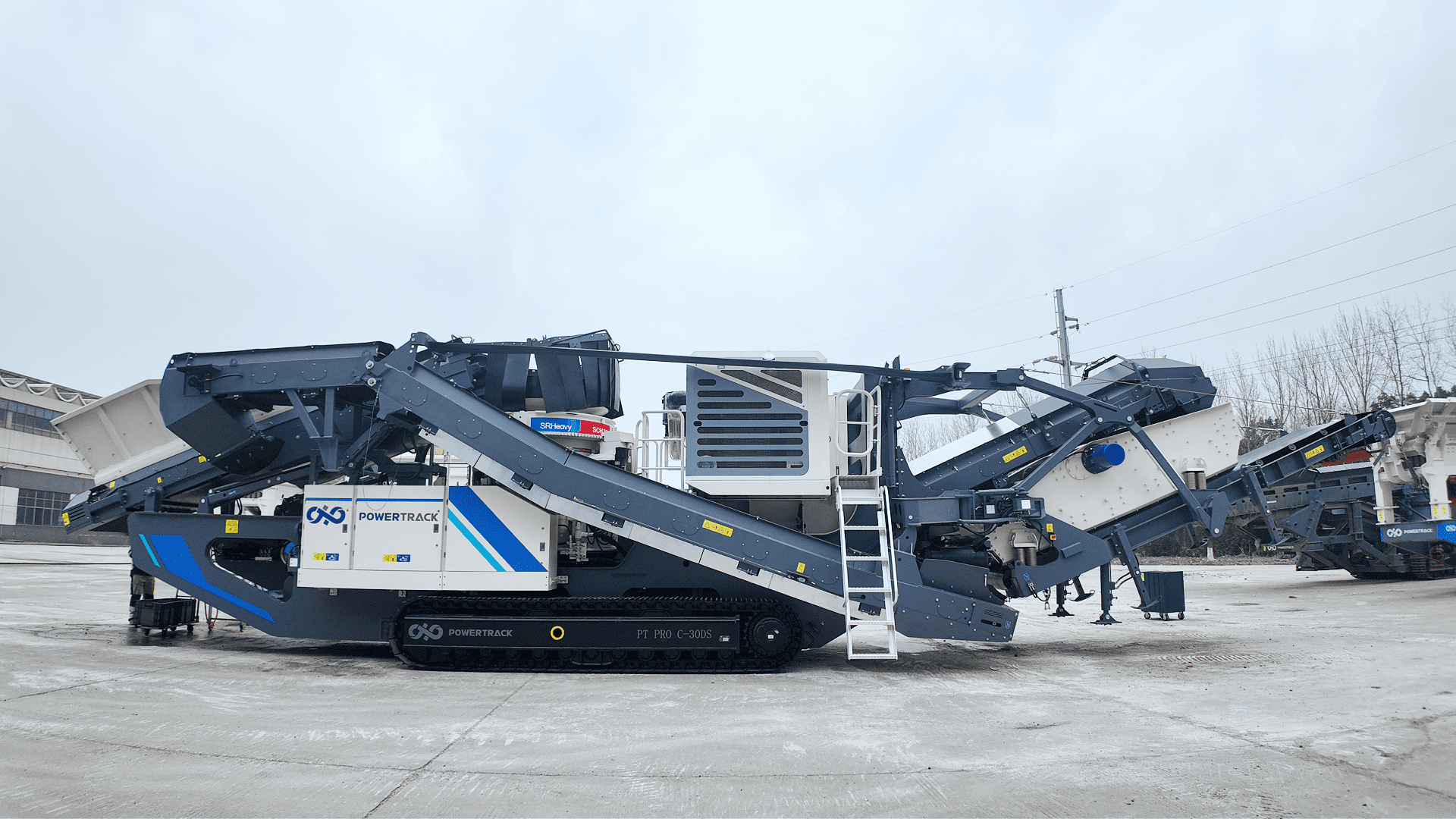

01 Integrates functions of feeding, crushing, screening and regrinding

• Compact in size, easy to transport.

• Project relocation doesn't require a crane, extremely fast and convenient.

02 Dual-power switching, saving fuel and ensuring convenience

Compared with the traditional diesel-to-hydraulic drive method, this system has higher energy conversion efficiency, lower overall energy consumption, and simpler maintenance procedures.

For remote projects and those with inconvenient power supply, the dual power system of oil and electricity has greater applicability and can meet various application conditions.

03 Smooth feeding, efficient crushing

By adopting variable frequency system to control feeding speed, the feeding speed can be adjusted according to the crushing effect of the materials, ensuring smooth feeding and full-load feeding of the crusher, thereby fully exerting its crushing capacity.

The crushing unit has a load feedback function. When a risk of blockage is detected, the feeding speed can be reduced or feeding can be stopped to reduce faults and ensure continuous operation.

04 Variable frequency system, stable and reliable

The crusher adopts the variable frequency controller from an international leading brand for startup and automatically switches the main circuit. Compared with traditional starting methods, it has lower starting current and excellent performance.

The feeding area of the crusher is equipped with an imported brand level sensor to monitor the material level of the machine in real time, enabling intelligent start and stop and stable operation.

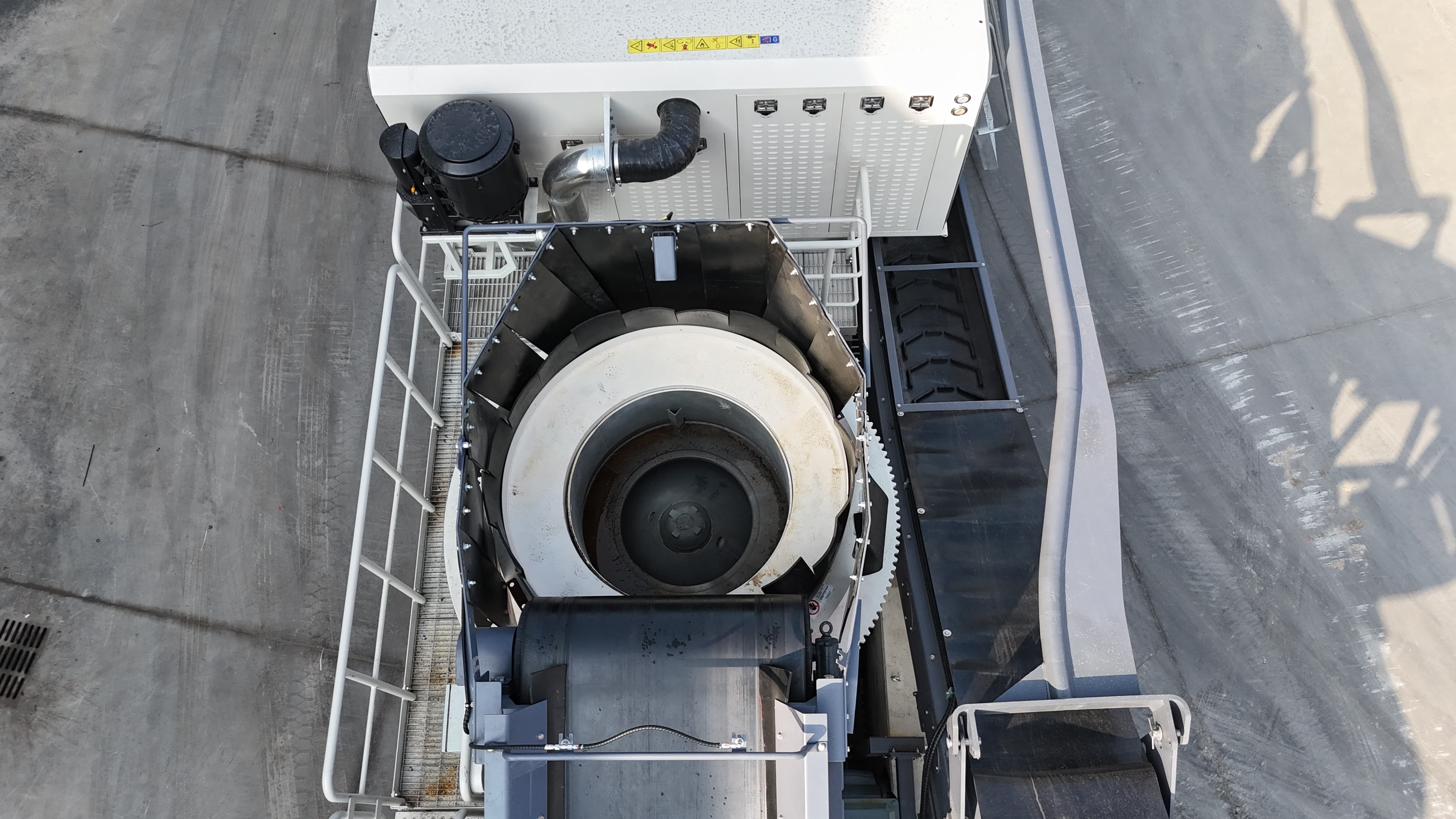

05 Equipped with SCH3000 multi-cylinder hydraulic cone crusher,productive and efficient

With the large stroke and high rotational speed design, more well-formed end products can be produced.

Hydraulic adjustment of the discharge port, rapid cavity cleaning and overload protection functions make operation and maintenance easier.Seven cavity types are available,  to meet diverse output specification requirements.

06 Safety Guaranteed

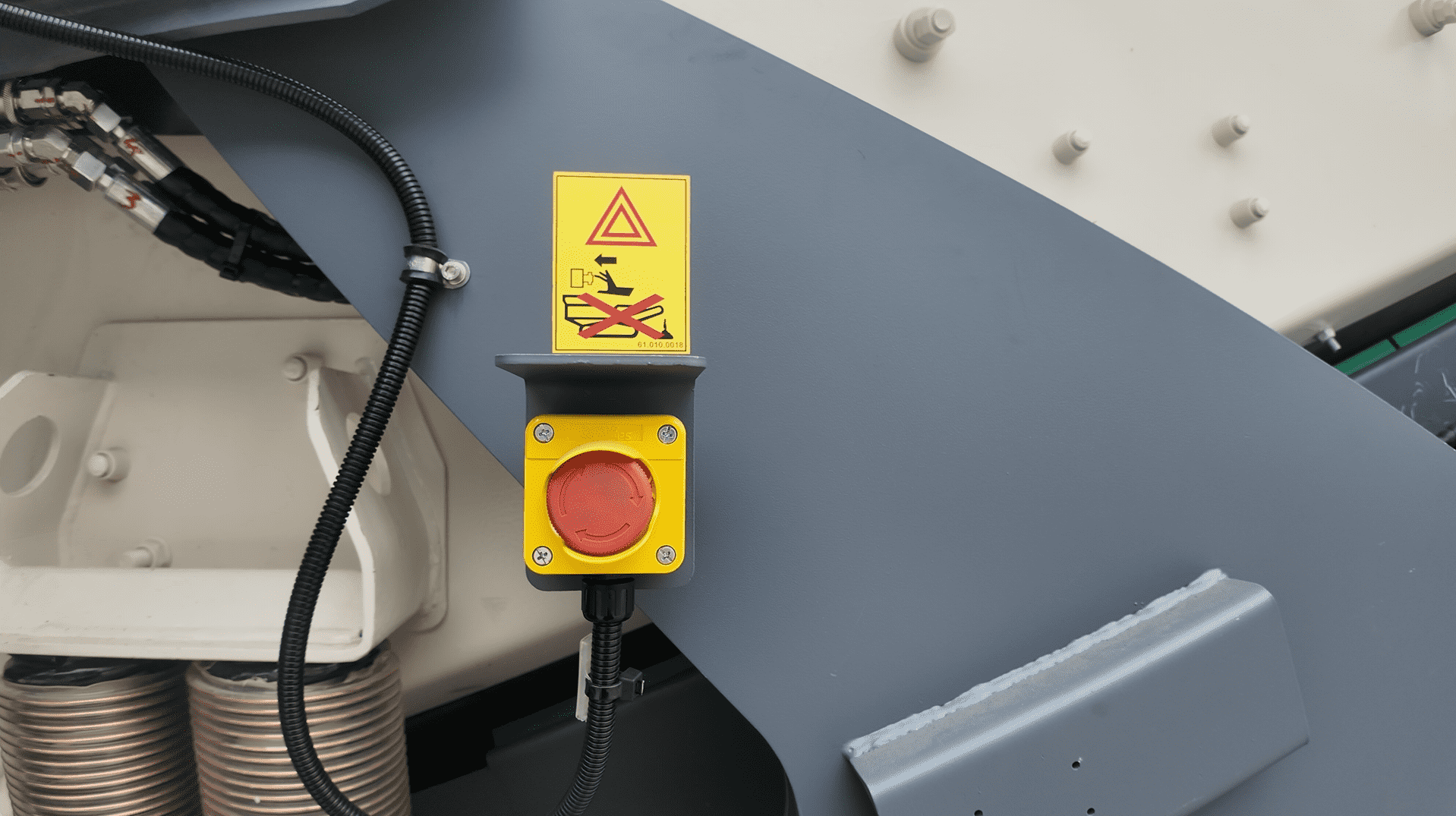

There are multiple emergency stop protection devices throughout the machine.

For raw materials containing difficult-to-crush metallic materials, a metal detector can also be optionally equipped on the belt feeder. The sensitivity can be flexibly adjusted according to the proportion of the metal content to further ensure the safety of equipment operation.

07 Precise Screening, Excellent Quality

The double-angle vibrating screen and side plate motor structure features a wide screen surface, allowing materials to pass through quickly, effectively reducing the thickness of the material layer.

Compared to traditional screening structures, the design with a large inclination angle at the feed end and a small inclination angle at the discharge end enables high-speed and efficient screening.

The screening unit utilizes the detachable vibrating screen and the return conveyor to work collaboratively, ensuring that the particle size and gradation of the end products meet precise standards.

The return conveyor rotates to discharge, increasing the variety of finished materials.
