Mobile screening range

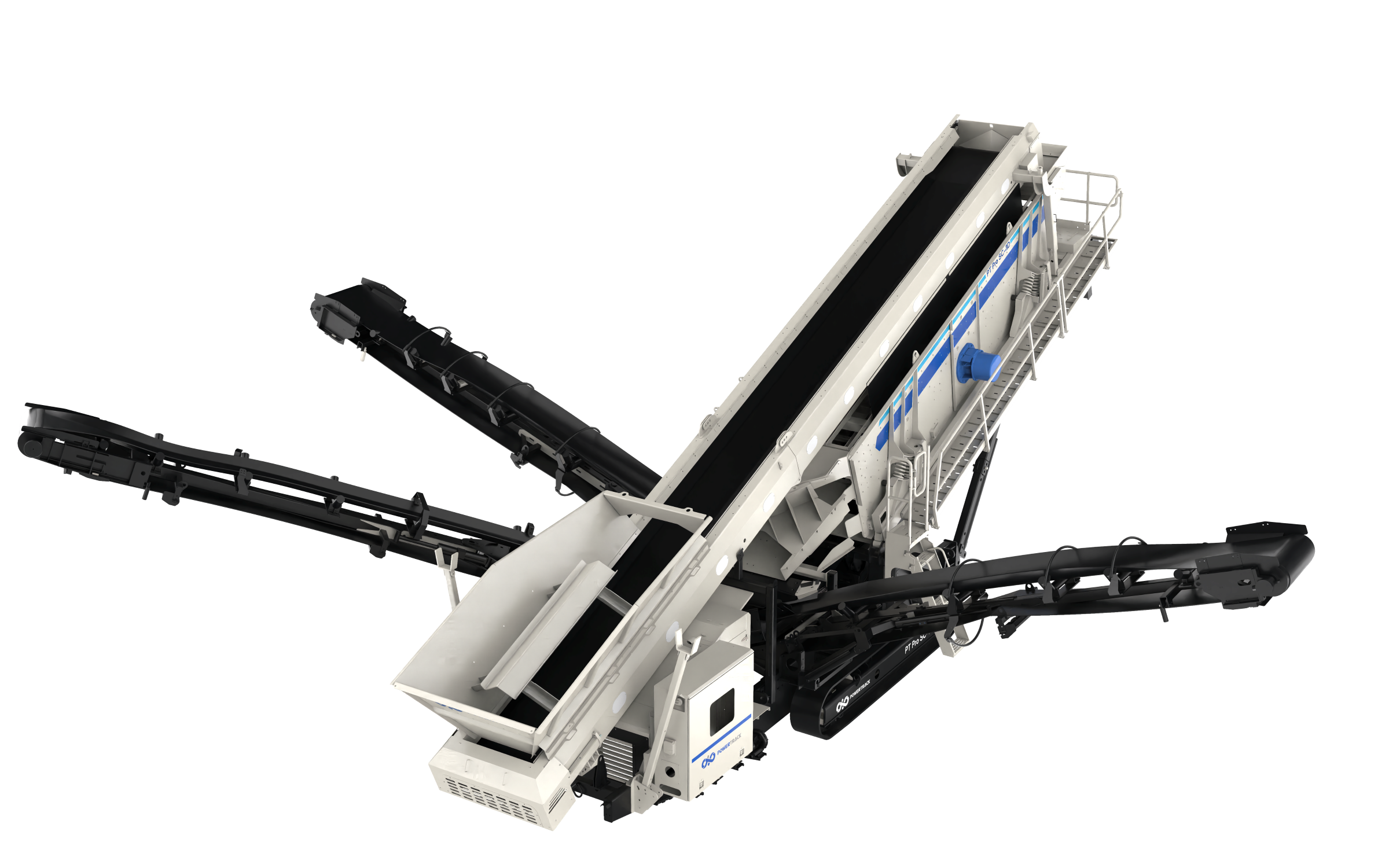

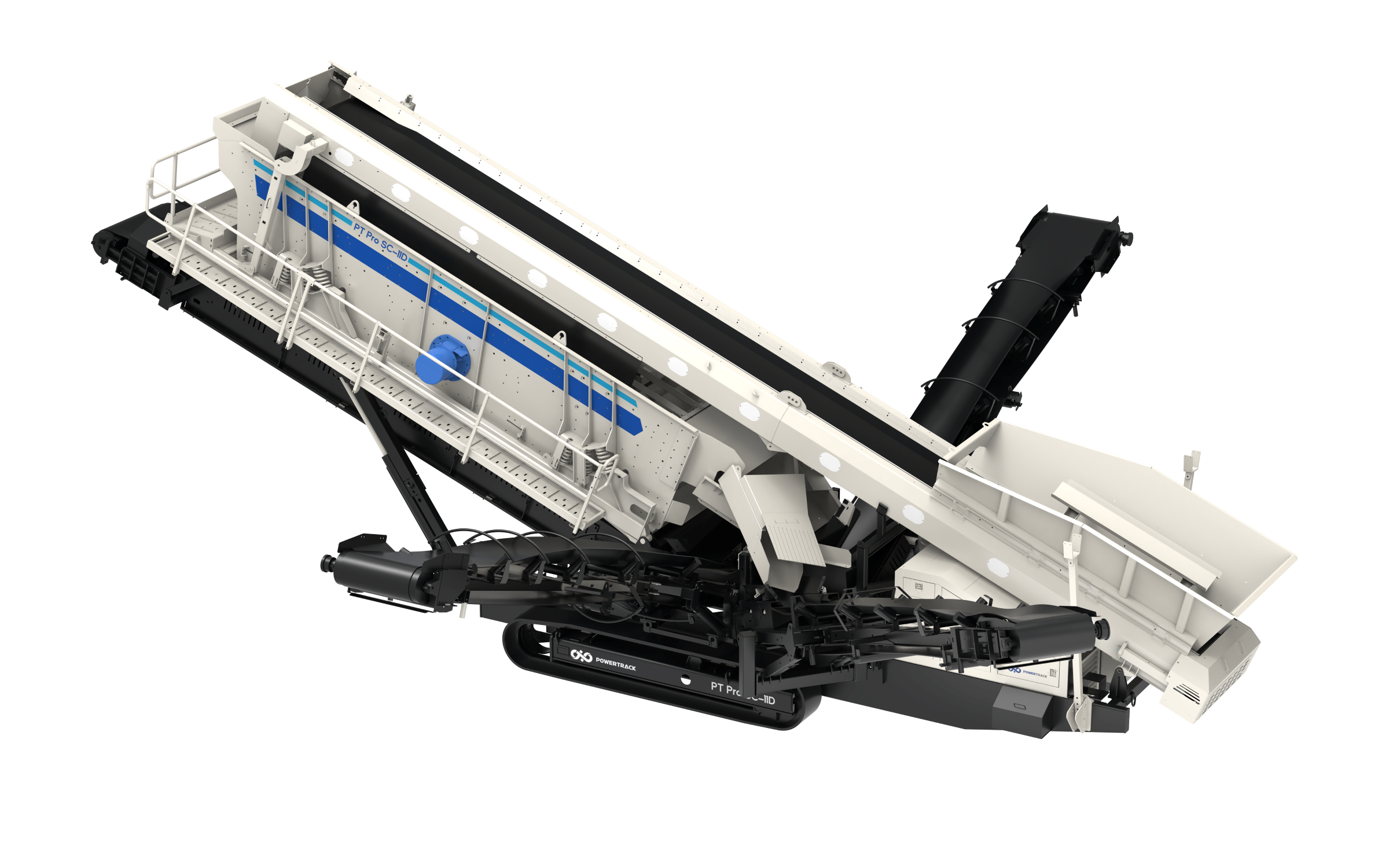

PT Pro SC-11D
Designed for screening crushed rock, as well as sand and gravel etc.
Product brief
Featuring a three-deck screen as standard, Powertrack mobile screening unit SC-11D is designed for high-production. It offers flexible configuration of screen meshes to meet specific customer requirements, capable of producing up to four end products. Flexible adjustment of screening angle ensures excellent screening capability for different applications. Designed for operational flexibility, the screen can be powered both onboard diesel generator power and external electricity supply.
  • Power:
    53 kW
  • Capacity:
    Up to 600 t/h
  • Weight:
    35 t

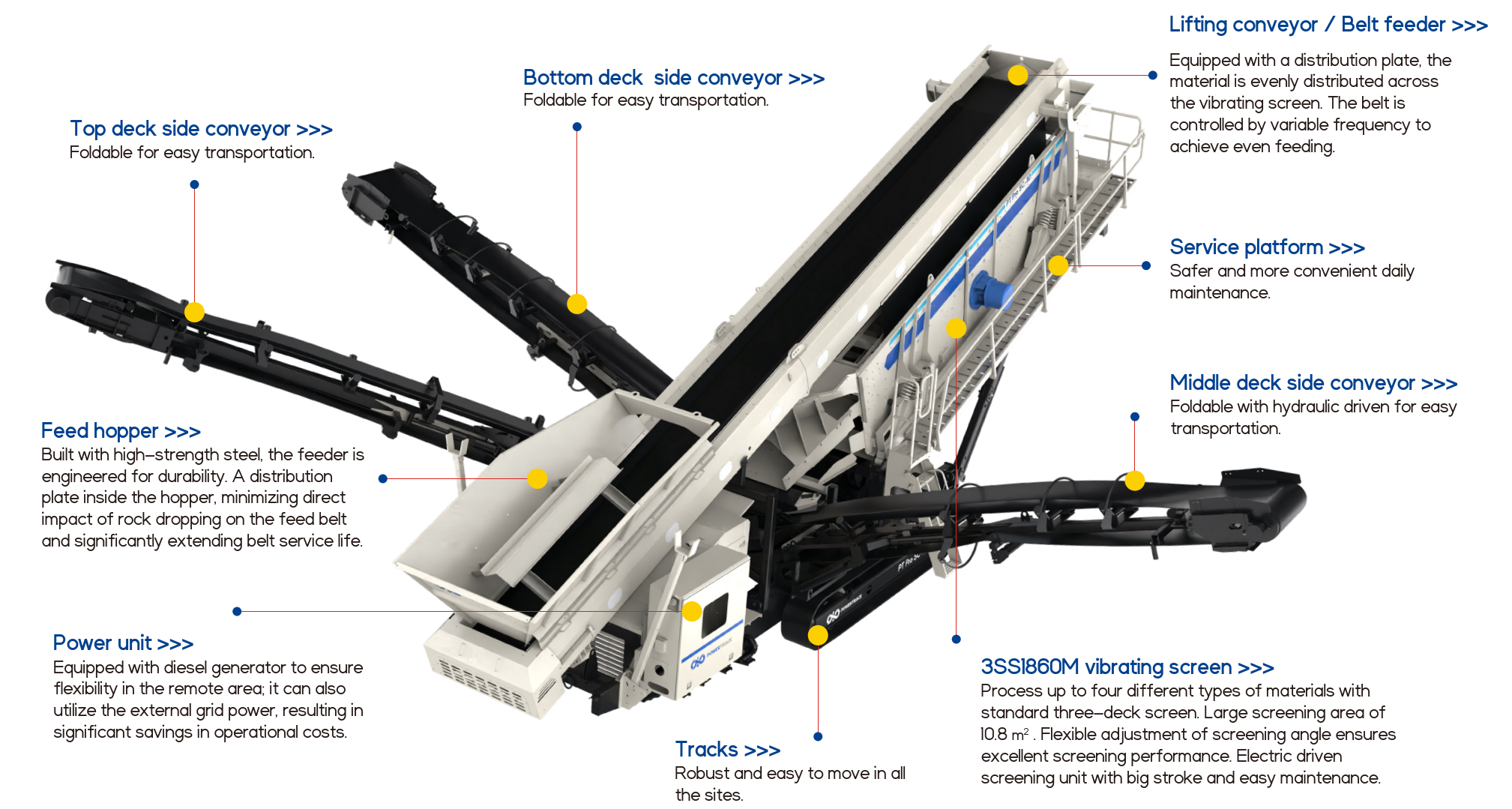

Machine features

Unique advantages
  • 01
    Three-deck screen with curved meshes design, ensuring both screening efficiency and production.
  • 02
    The screening unit is powered by a side motor, generates strong force and higher screening efficiency.
  • 03
    Variable frequency screen to Reduce the starting current and improve lifetime.
  • 04
    Dual power driven, enable flexibly switching between diesel generator and plug-in electricity.
  • 05
    Premium components ensures excellent performance.
Main parameters

ower type

Dual power

Capacity

Up to 600 t/h

Driving power

53 kW

Power unit

Engine: Cummins

Transportation dimensions  L x W x H

16 100 × 3 500 × 3 800 mm

Working dismensions  L x W x H

15 500 × 14 400 × 6 400 mm

Weight

35 000 kg

Maximum recommended feed size

200 mm

Screening area

6 000×1 800 mm

Screen decks

3


Applications
It is widely used for screening crushed aggregates in fields such as quarry, construction and construction waste recycling in conjunction with mobile crushing units.
Construction
Aggregates
Contractor
