Product brief

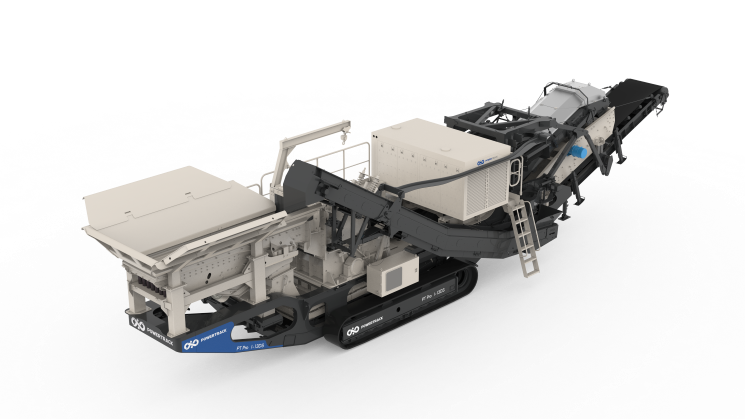

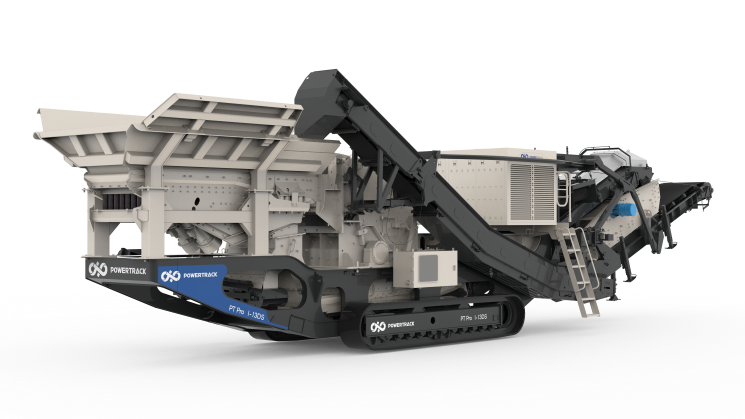

Powertrack PT Pro I-13DS is commonly used for recycling and is also the best choice for crushing natural stone with medium to low abrasiveness. Due to its high crushing ratio, it is often used as an independent unit to produce high-quality finished aggregates. Thanks to the hybrid design, it can be connected to the external power grid to drive the crushing system, resulting in zero emission and operational costs reduction; it can also be powered by the onboard genset.

Power：

315 kW
Capacity：

150-400 t/h
Weight：

59 t

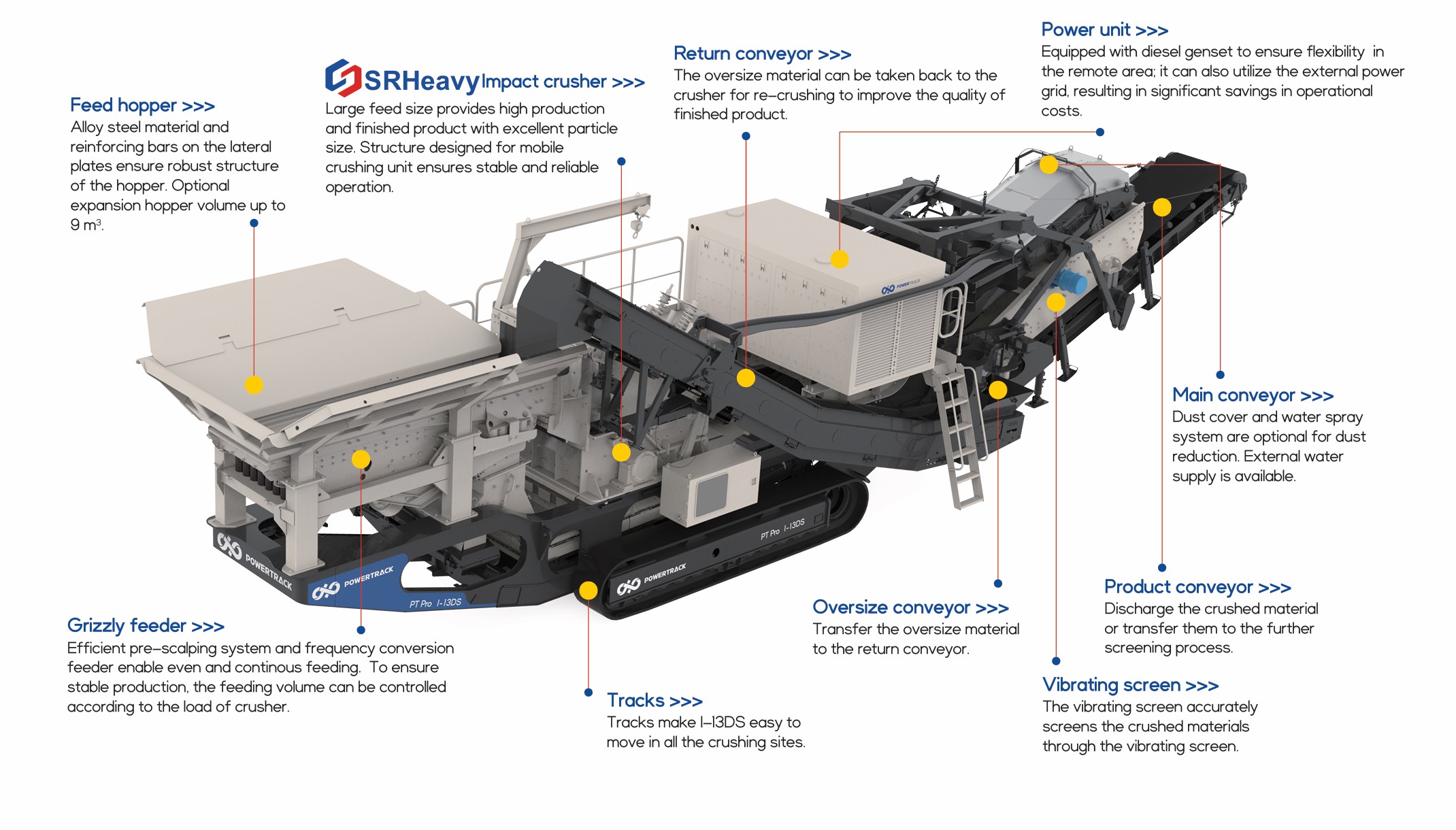

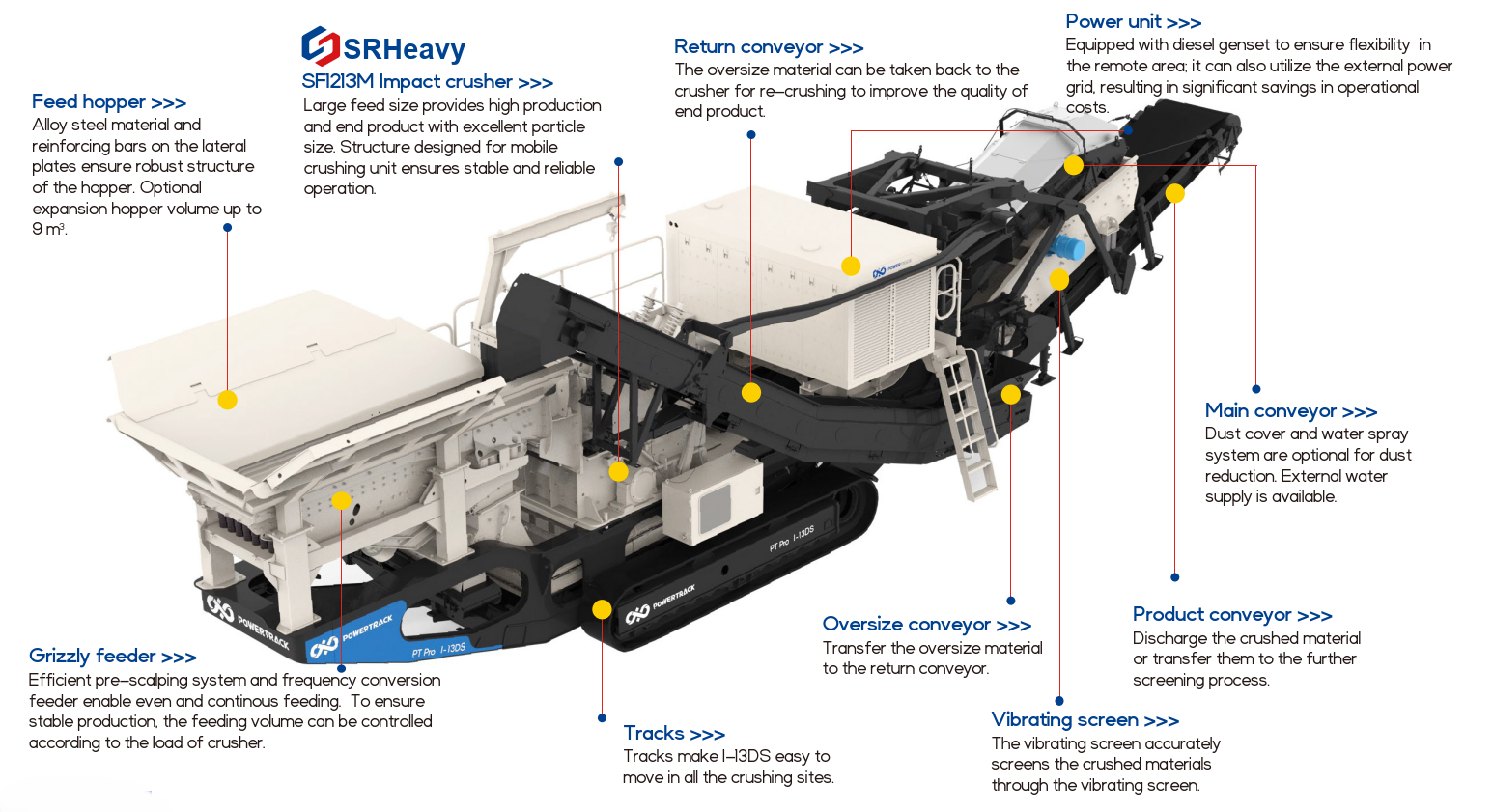

Machine features

Unique advantages

01
Integrated design with compact size.
02
Dual power drive to switch power supply between diesel and electric.
03
Unique electric control to reduce the starting current and improve lifetime of VFD.
04
SRHeavy Horizontal shaft impactor with 1 breaker plate for large crushing ratio and high throughput.
05
Vibrating screen with dual slope screening with higher efficiency.

Main parameters

Power type	Dual power
Capacity	150-400 t/h
Driving power（include screening unit）	315 kW
Power unit	Engine SCANIA 355 kW Generator Mecc Alte
Transportation dimensions L x W x H	19,100 x 3,500 x 3,750 mm
Working dimensions L x W x H	19,100 x 5,300 x 4,900 mm
Weight	59,000 kg
Feed opening	1,330 x 800 mm
Maximum recommended feed size	600 mm
Crusher power	250 kW

Applications

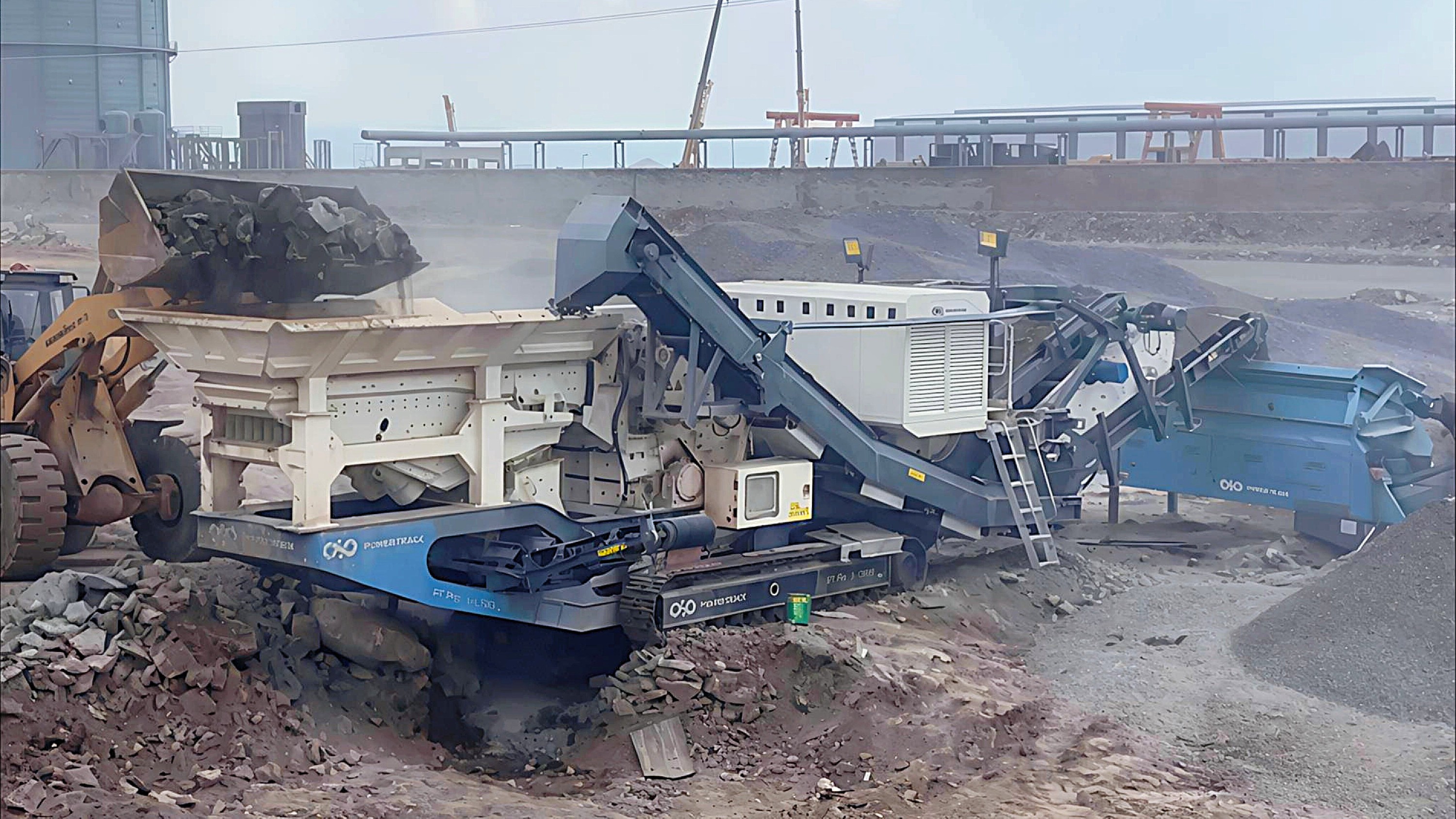

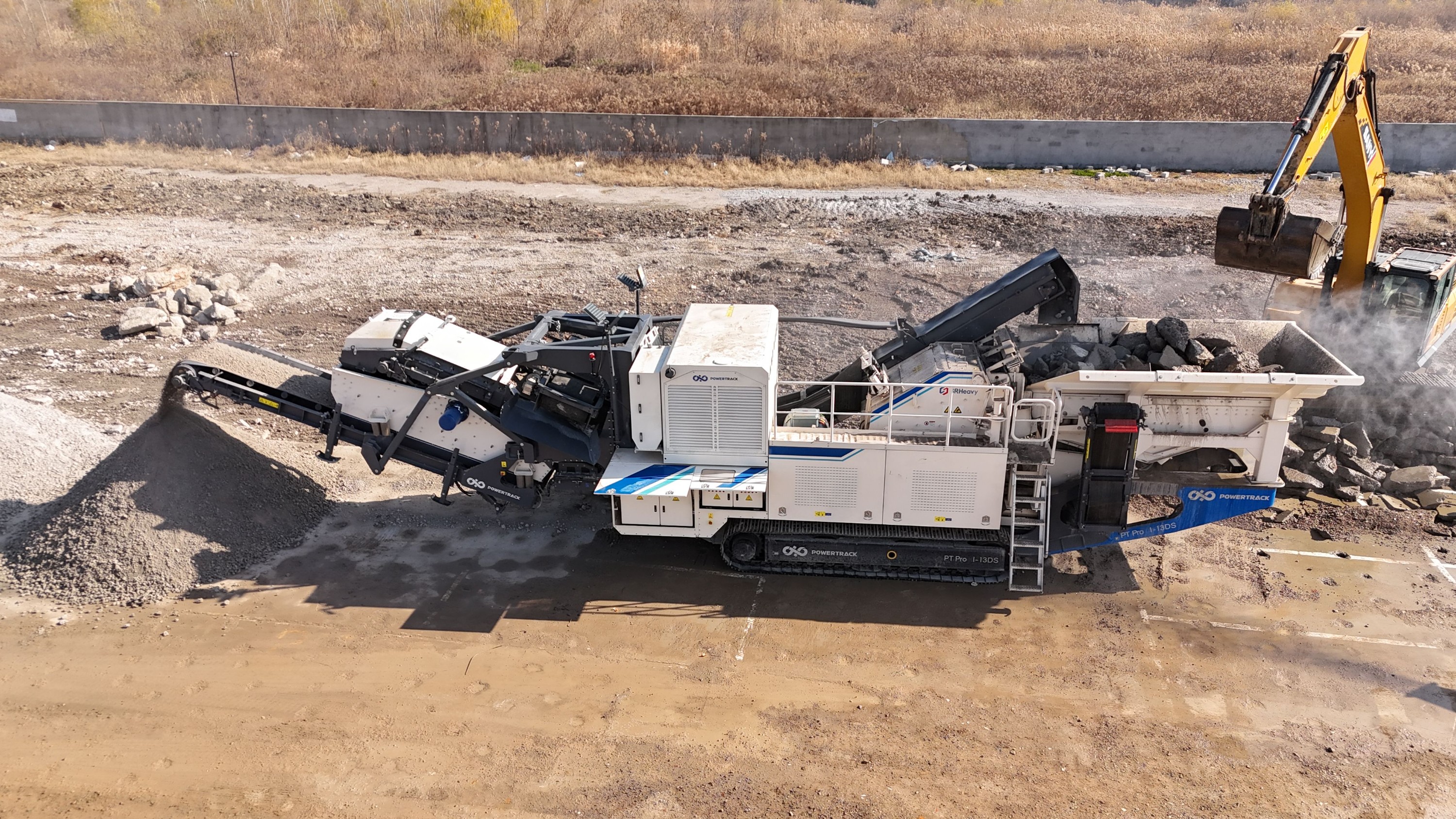

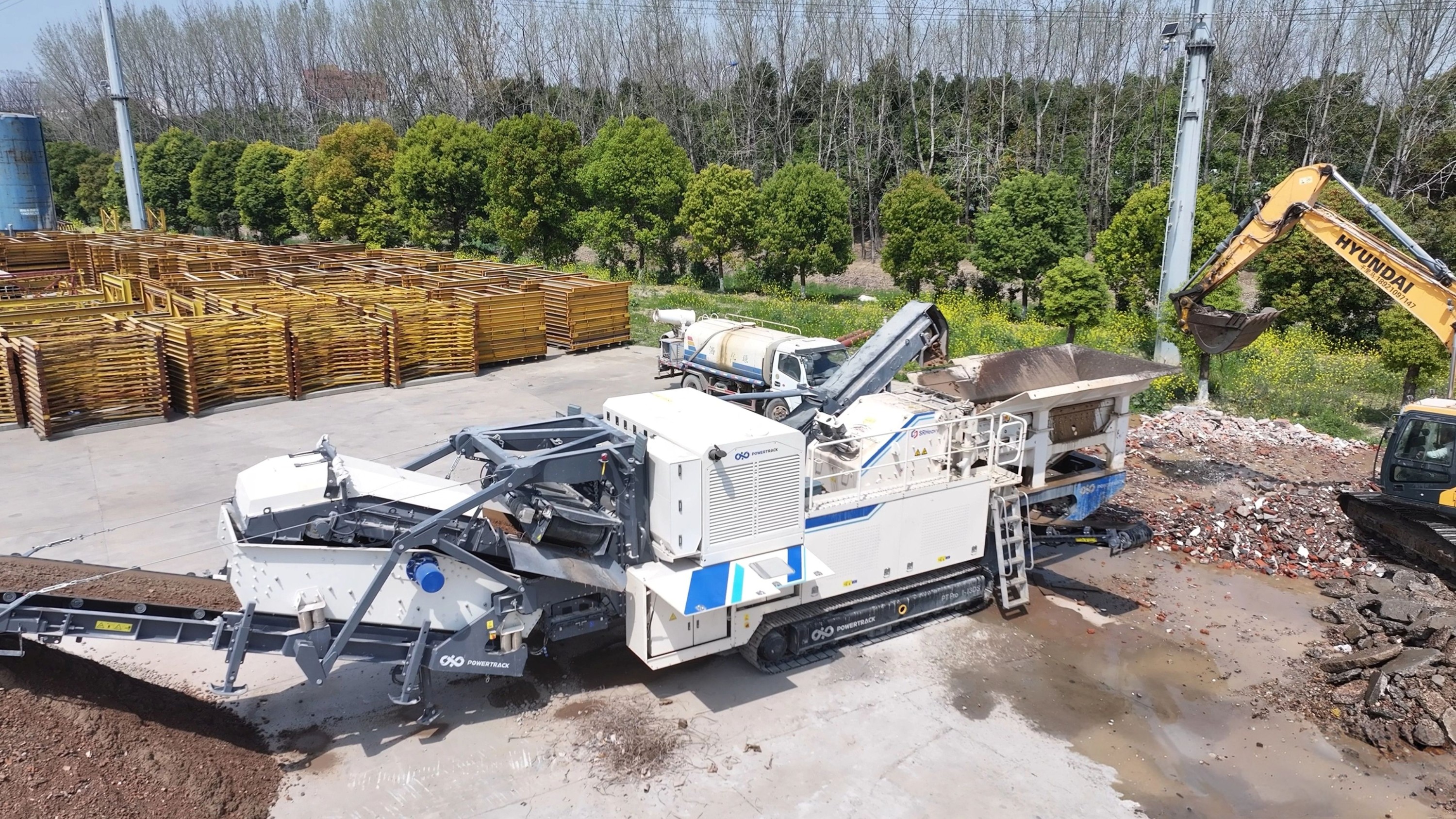

Commonly used in the crushing of the medium to low abrasive materials such as concrete, asphalt, construction waste, slag or limestone, coal, bluestone, shale, etc.

Construction

Aggregates

Contractor
