Mobile cone crushing range
PT Pro C-30DS
Used for secondary and tertiary crushing of medium to high hardness materials
Product brief

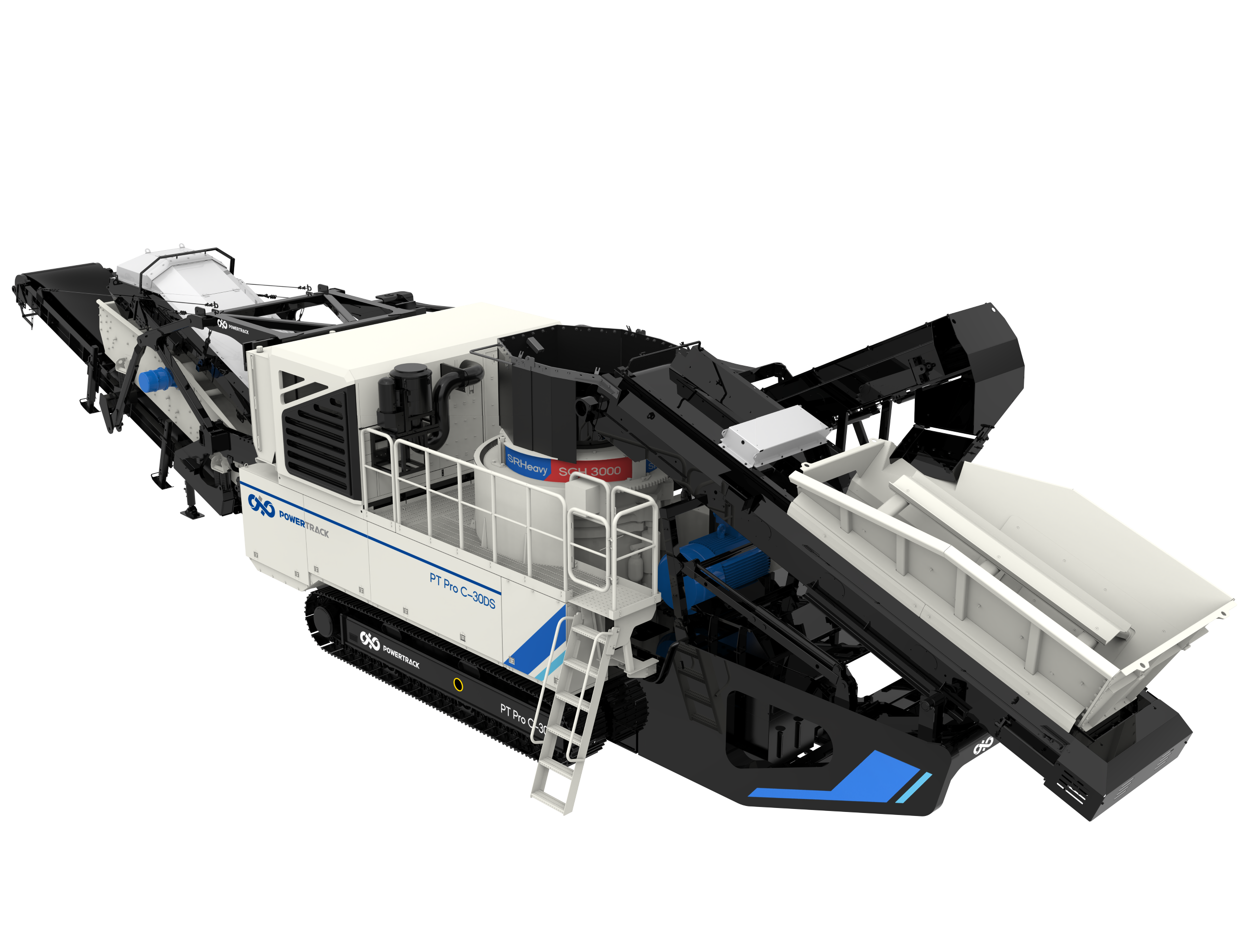

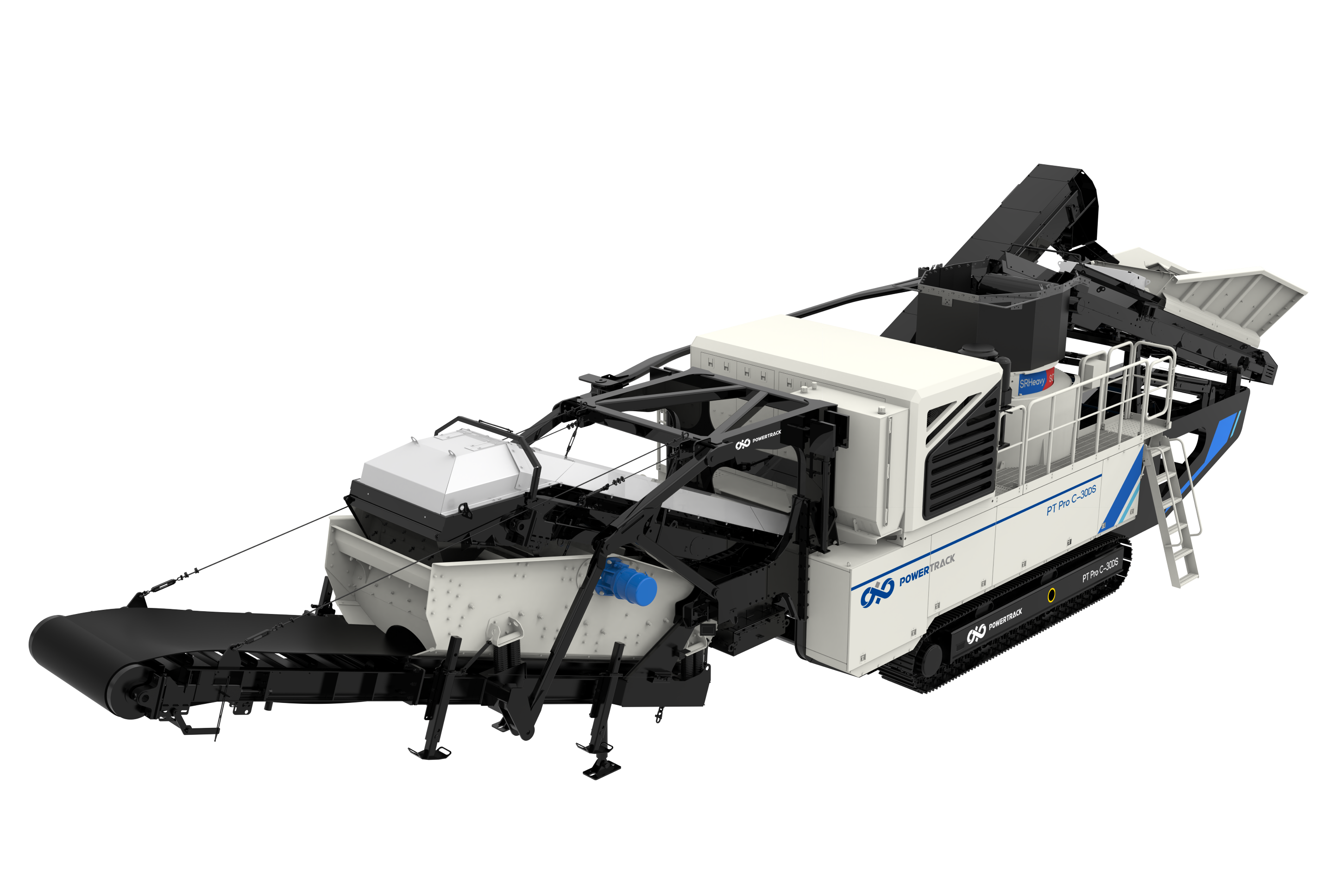

Powertrack PT Pro C-30DS is a dual power mobile cone crushing unit with high production and high efficiency. This unit integrates three major functional modules of feeding, crushing and screen-ing into a single chassis, enable easy transportation for different working sites. Thanks to its compact design, the crushing unit can be transported by a common truck. In work sites with grid power supply, the crusher can be powered by plug in electricity, resulting in operational cost reduction. In remote area, the power unit can switch to onboard gensent.
  • Power:
    342 kW
  • Capacity:
    Up to 400 t/h
  • Weight:
    61 t

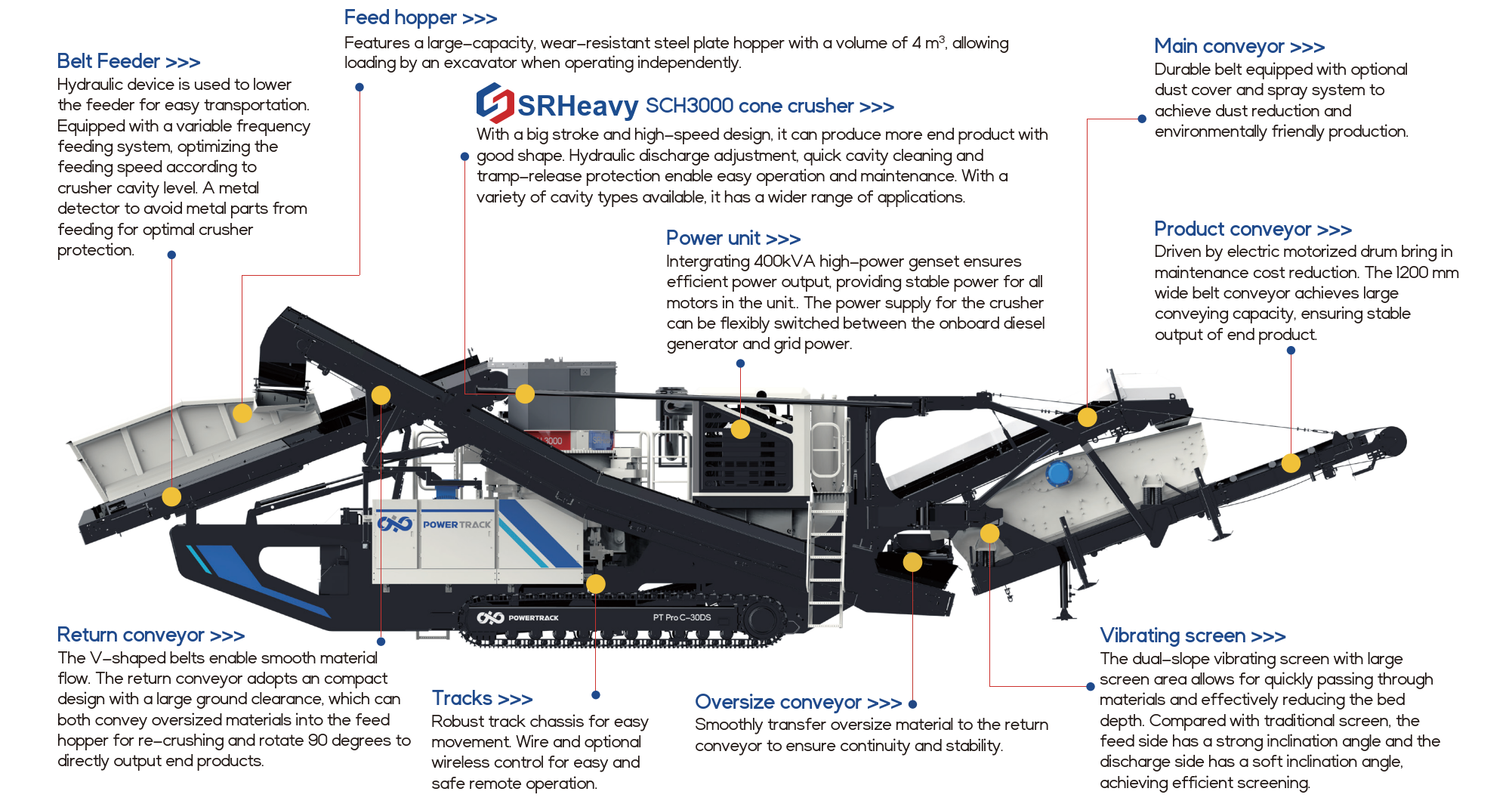

Machine features


Unique advantages
  • 01
    Compact size with integrated feeding, crushing, screening and return units.
  • 02
    Dual power drive to switch power supply between diesel and electric.
  • 03
    Variable frequency feeder and level sensor for automatic and optimized control of the feeding according to crusher cavity level.
  • 04
    Reduce the starting current and improve lifetime by VFD.
  • 05
    SRHeavy® multi-cylinder cone crusher: big stroke, high output, 7 cavity options.
  • 06
    Double-slope vibrating screen with side motors for energy efficiency and high performance.
  • 07
    (Optional) metal detector to prevent damage to the crusher by metals particles.
Main parameters
Power type
Dual power
CapacityUp to 400 t/h
Driving power314 kW / 342 kW (incluede screen unit)
Power unit

Engine: SCANIA

Generator: Mecc Alte

Transportation dimensions  L x W x H 17 600×3 500×3 800 mm

20 700×3 500×3 800 mm (incluede screen unit)

Working dimensions  L x W x H

16 300×4 700×4 400 mm

19 400×4 700×5 000 mm (incluede screen unit)

Weight53 000 kg / 61 000 kg (include screen unit)
Maximum recommended feed size 210 mm (STD C)
Crusher power250 kW


Applications
Widely used in mining, construction, transportation infrastructure, construction waste and the produc- tion of specialized sand and gravel materials., etc.
Construction
Aggregates
Contractor
