Mobile jaw crushing range

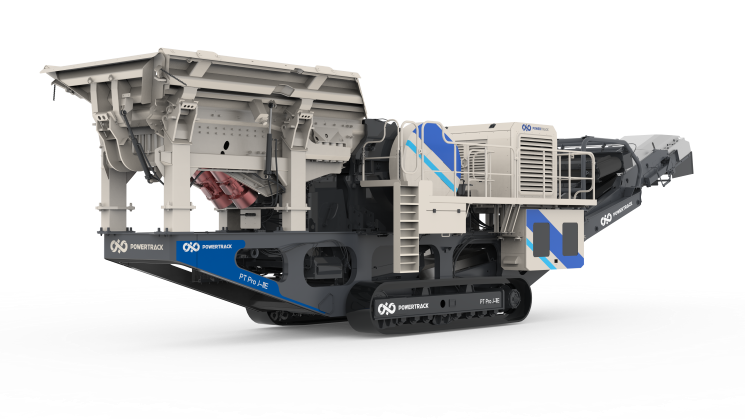

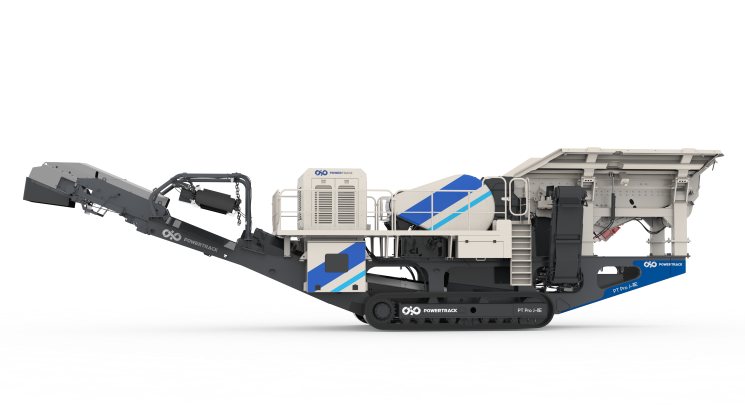

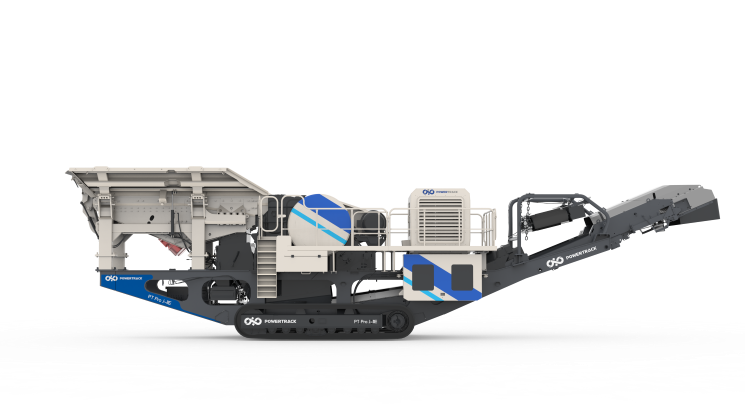

PT Pro J-11E
Designed to meet the primary crushing of the hardest material
Product brief
Powertrack PT Pro J-11E is ideal for aggregates production, crushing of natural materials or recycled materials such as demolished concrete. It is used as primary crusher that reduces the material to smaller size for further processing. It provides excellent performance under harsh environment. Reliable design ensures long lifespan with minimum maintenance cost. Hydraulic driven tracks are designed for flexible movement at the production site; compact dimensions enable easily transportation between different sites. The electric driven crushing and conveyor system saves operation cost and improves customer profit significantly.
  • Power:
    138 kW
  • Capacity:
    150-500 t/h
  • Weight:
    42 t

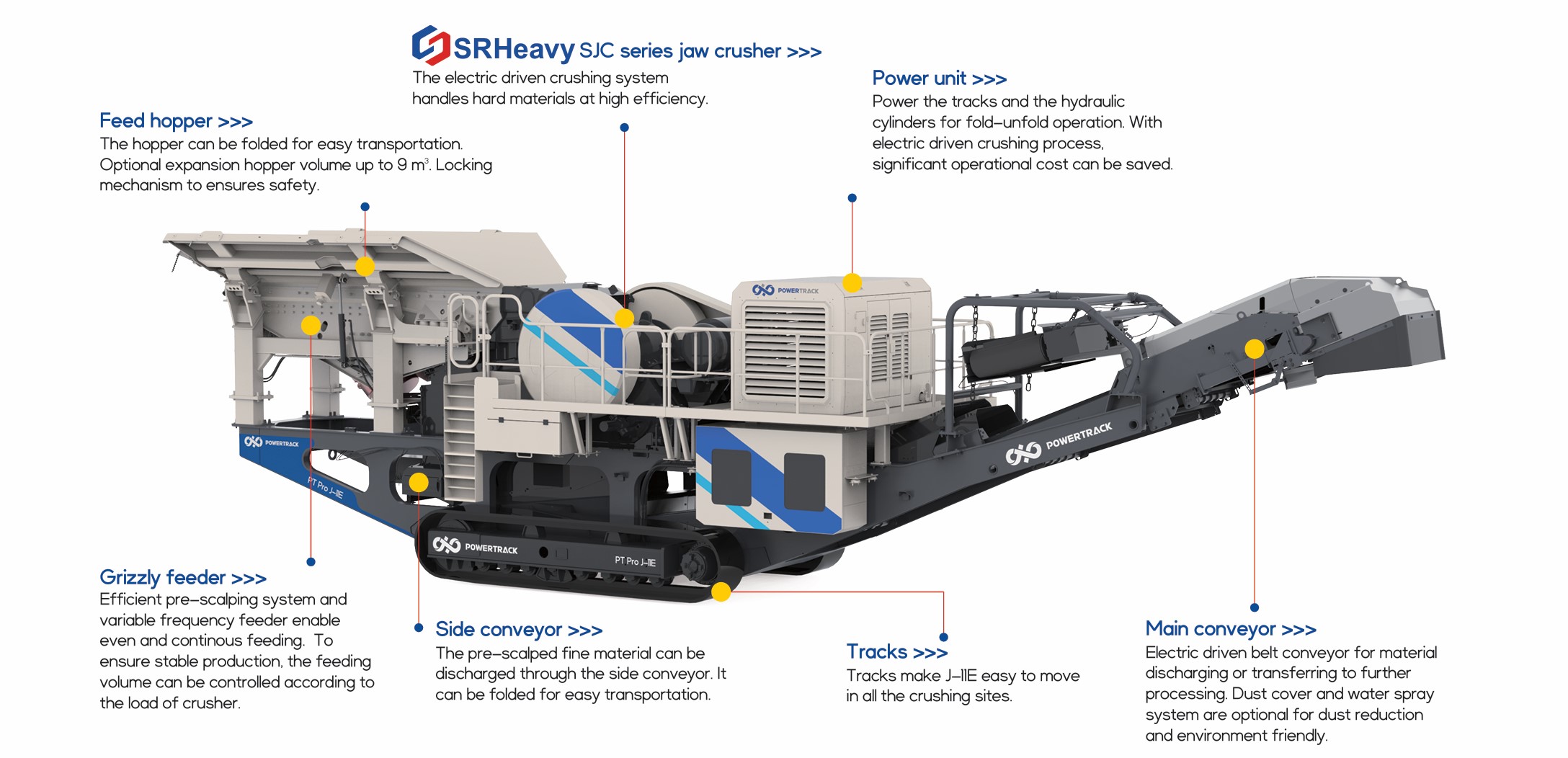

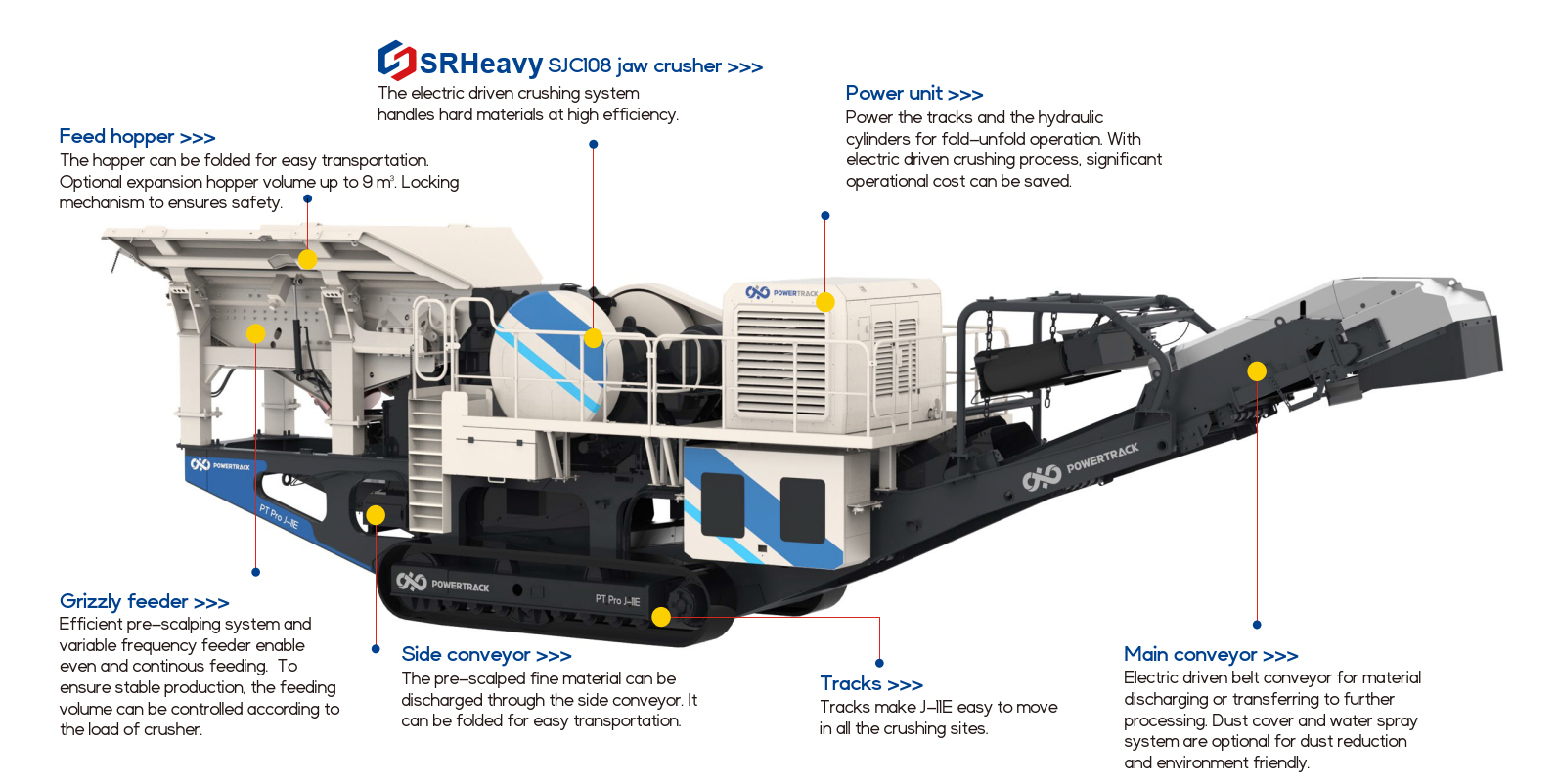

Machine features

Unique advantages
  • 01
    SRHeavy® SJC jaw crusher, larger crushing ratio, higher production.
  • 02
    Plug-in electric driven brings energy saving, environmental protection and less maintenance.
  • 03
    Premium components ensures excellent performance.
  • 04
    Grizzly feeder provides high efficient material separation.
  • 05
    Automatic start and stop function for the feeder according to the level of the jaw crusher cavity to ensure constant production.
  • 06
    Provide magnetic separator, water spray, dust cover, remote control, extended hopper and other options.
Main parameters

Power type

Electric power

Capacity

150-500 t/h

Driving power

138 kW

Power unit

Engine Cummins 110 kW

Transportation dimensions  L x W x H

15,450 x 3,100 x 3,600 mm

Working dimensions  L x W x H

15,350 x 5,900 x 3,900 mm

Weight

42,000 kg

Feed opening

1,060 x 700 mm

Maximum recommended feed size

560 mm

Crushing power

110 kW


Applications
Widely used in mining and construction materials fields. Suitable for pre-crushing of high hardness of natural stone, such as pebble , granite, basalt, quartz stone, iron ore, limestone, etc., as well as reycling materials.
Contractor
Aggregates
Construction
Construction waste recycling
