Product brief

Powertrack PT Pro SC-08E series mobile screening unit features a convenient screen design. Depending on the properties of the materials being screened, a wide range of screen media can be selected to control the final product granularity, ensuring efficient material screening. All conveyors can be hydraulically folded for easy transportation. PT Pro SC-08E is commonly used in combination with mobile crushing units.

Power：

46 kW
Capacity：

120-500 t/h
Weight：

30 t

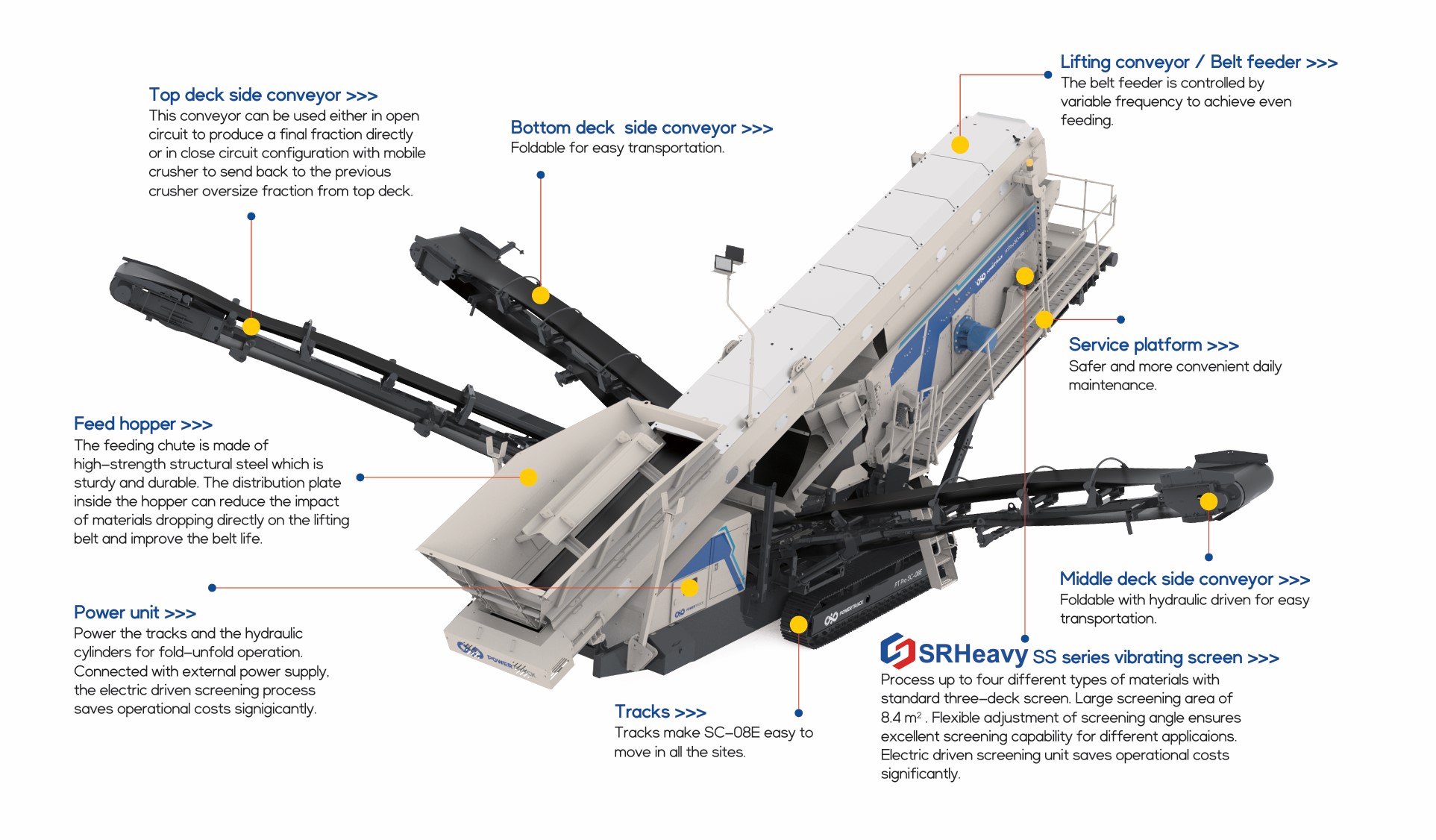

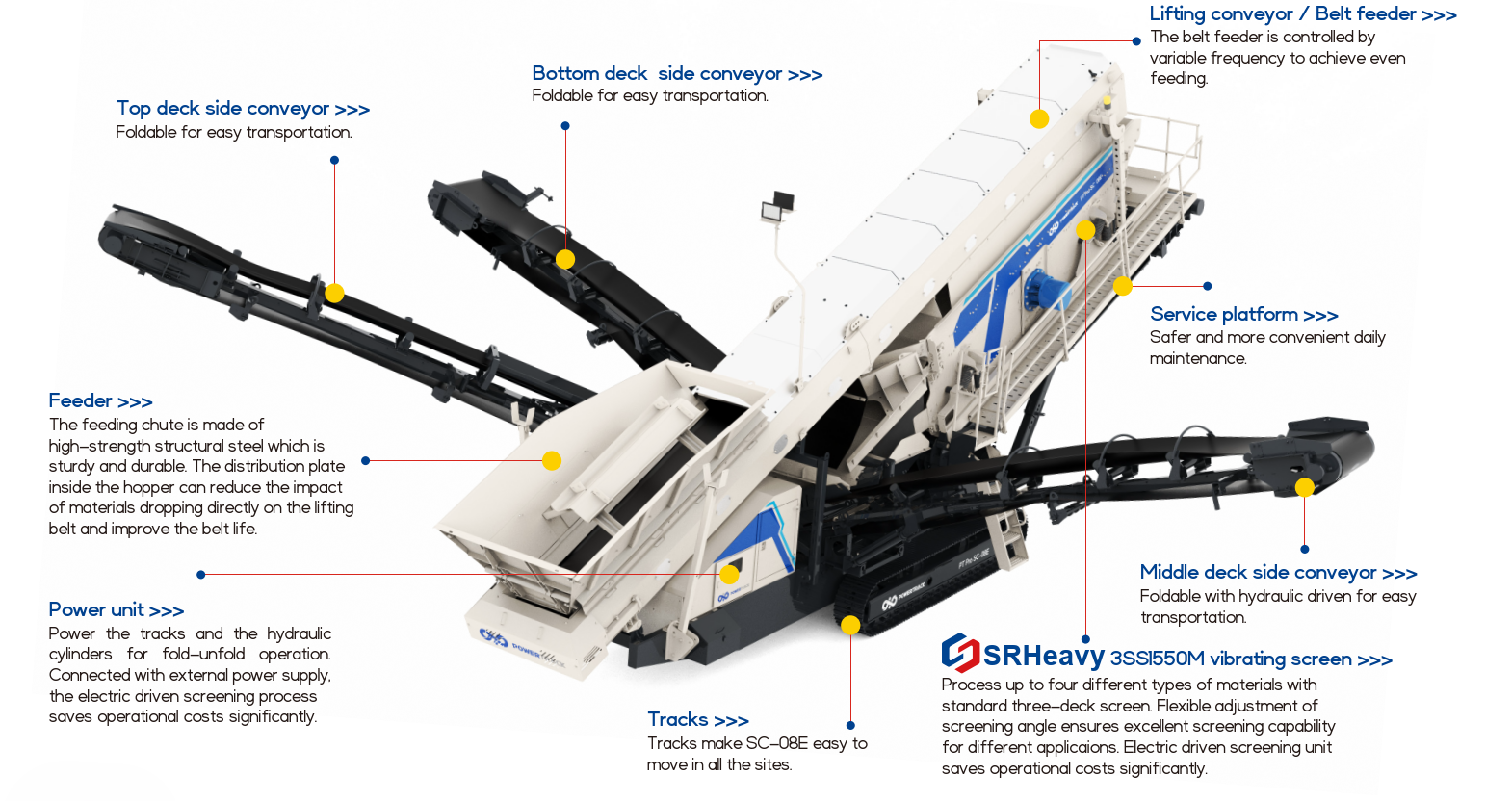

Machine features

Unique advantages

01
Three-deck screen with curved meshes design.
02
Compact size to meet international transportation standard.
03
Premium components ensure excellent performance.
04
Plug-in electric driven brings energy saving, environmental protection and less maintenance.

Main parameters

Power type	Electric power
Capacity	150-500 t/h
Driving power	46 kW
Power unit	Engine Cummins 110 kW
Transportation dimensions L x W x H	15,000 × 3,200 × 3,700 mm
Working dismensions L x W x H	14,550 × 13,200 × 6,200 mm
Weight	32,000 kg
Maximum recommended feed size	150 mm
Screening area	5,480×1,530 mm
Screen decks	3

Applications

It is widely used for screening crushed aggregates in fields such as mining, construction materials and waste recycling in conjunction with mobile crushing units

Construction

Aggregates

Contractor

Combine with
