Product brief

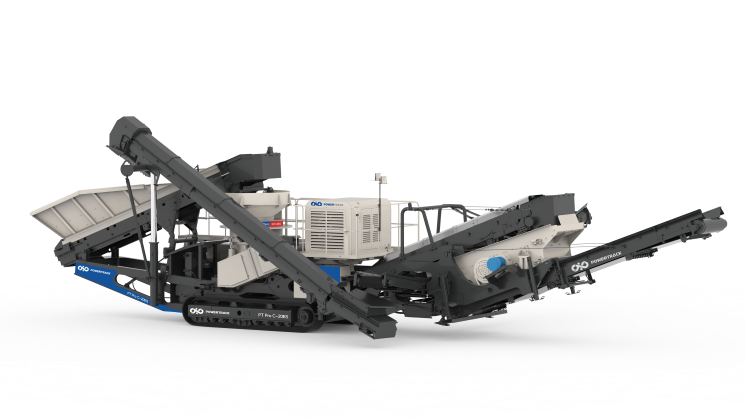

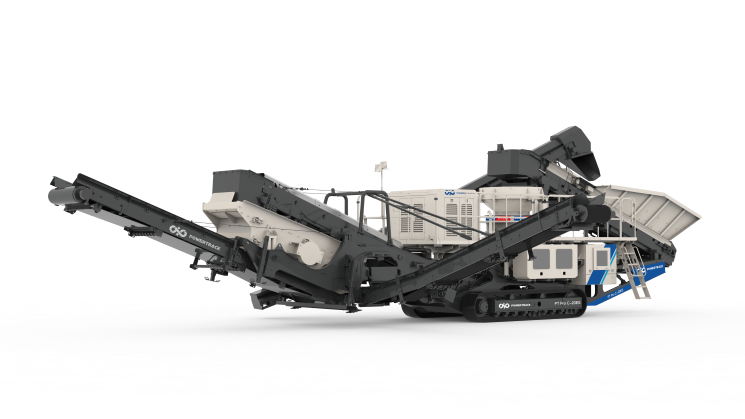

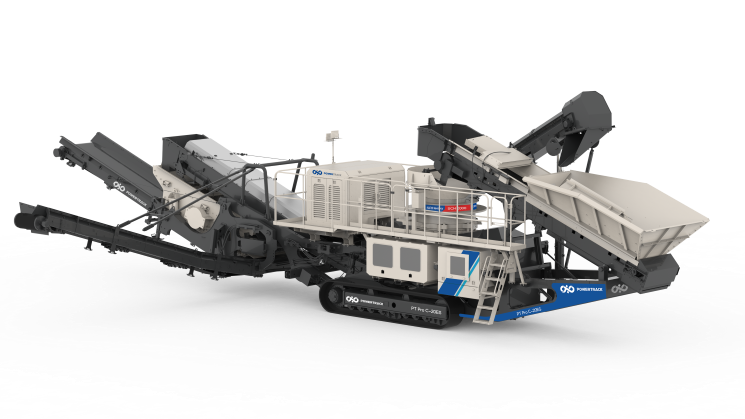

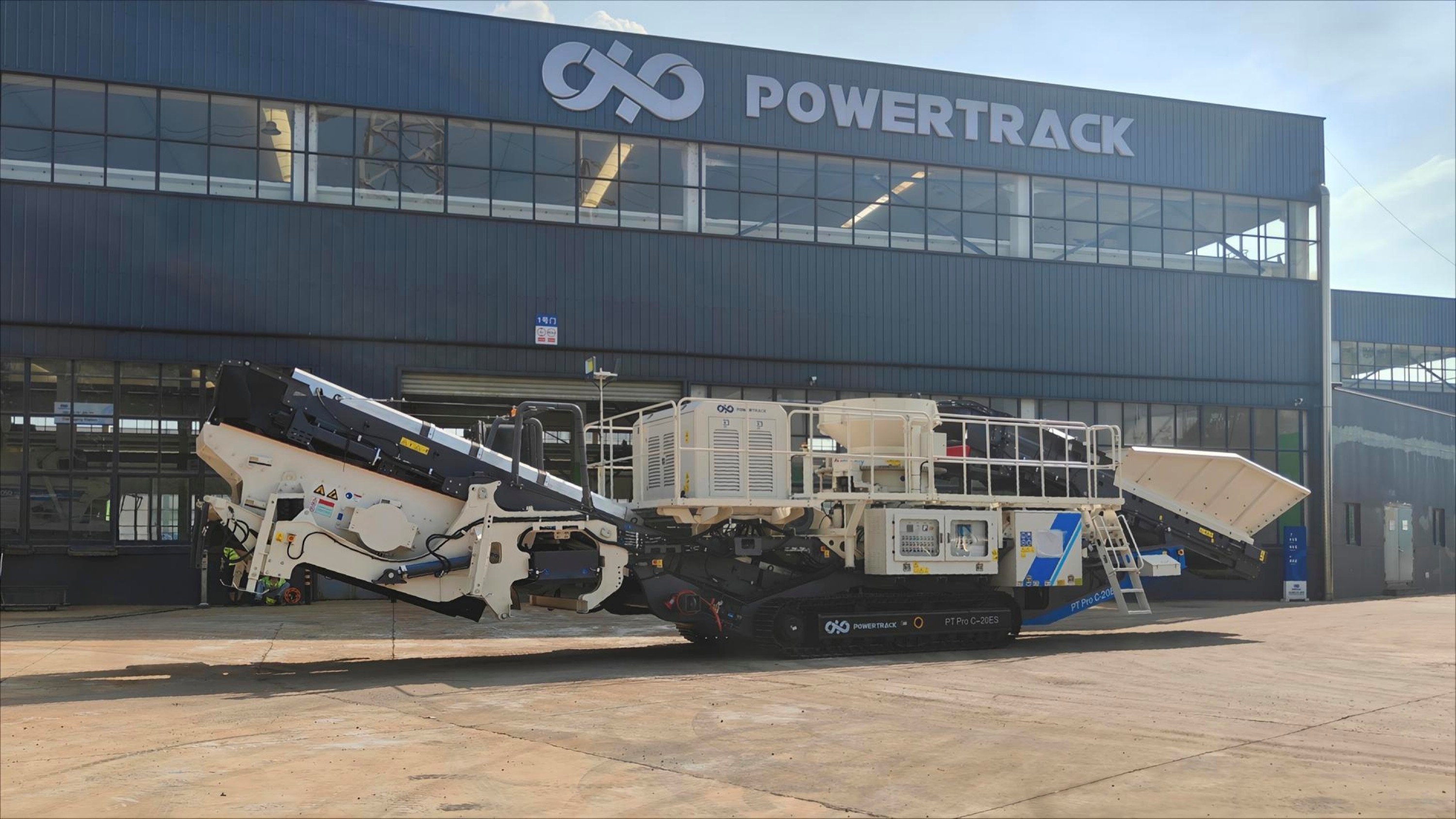

Powertrack PT Pro C-20ES is suitable for secondary and tertiary crushing. It adopts the SCH2000 cone crusher that provides high production, high crushing ratio and high-quality aggregates. The proven design ensures machine reliability and is easy to maintain. Electric driven crushing system greatly reduces operational cost. Combined with Powertrack jaw crushing unit, it is an ideal choice for crushing medium to high hardness natural stone into aggregate.

Power：

246 kW
Capacity：

Up to 250 t/h
Weight：

43 t

Send inquiry

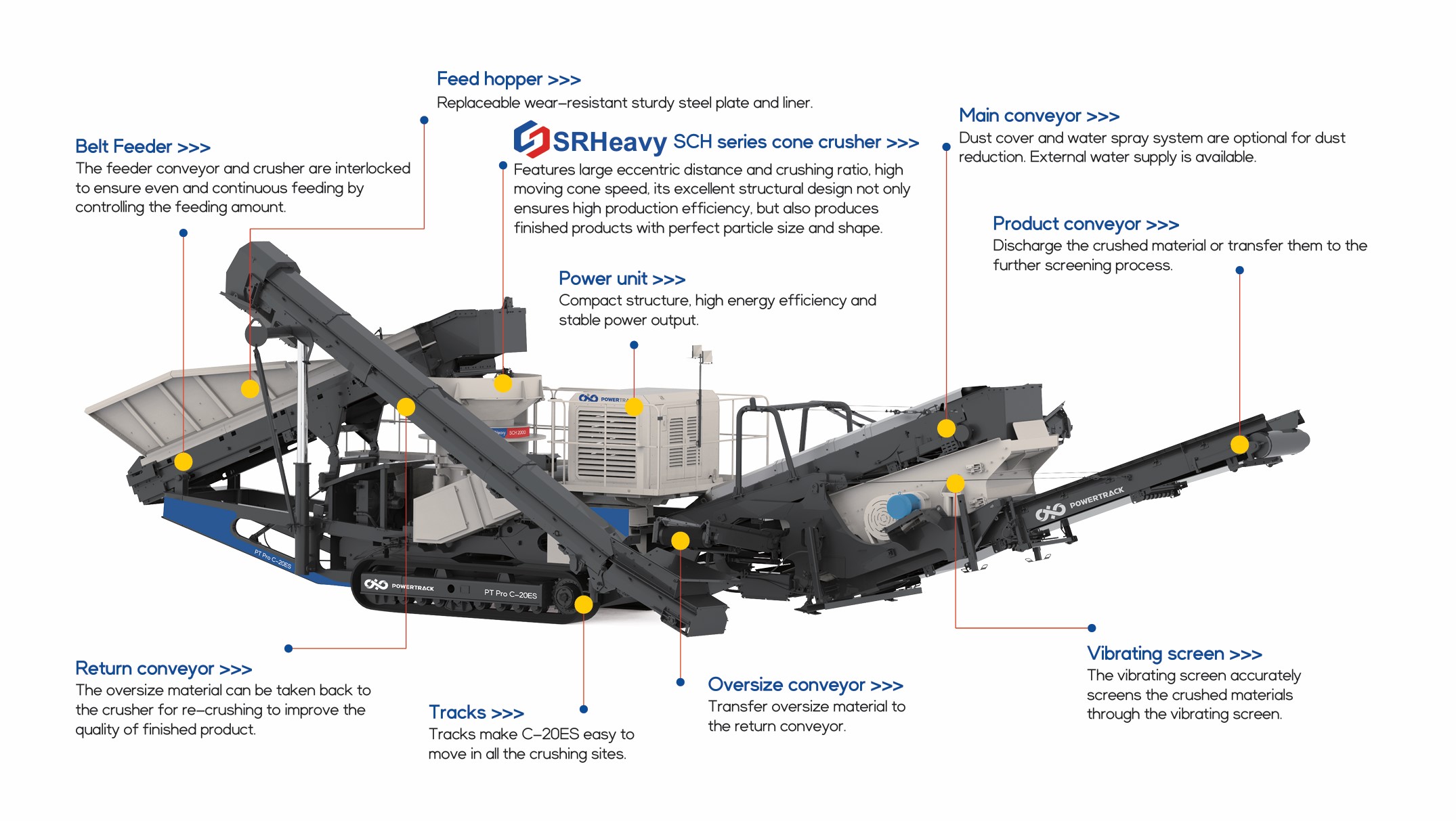

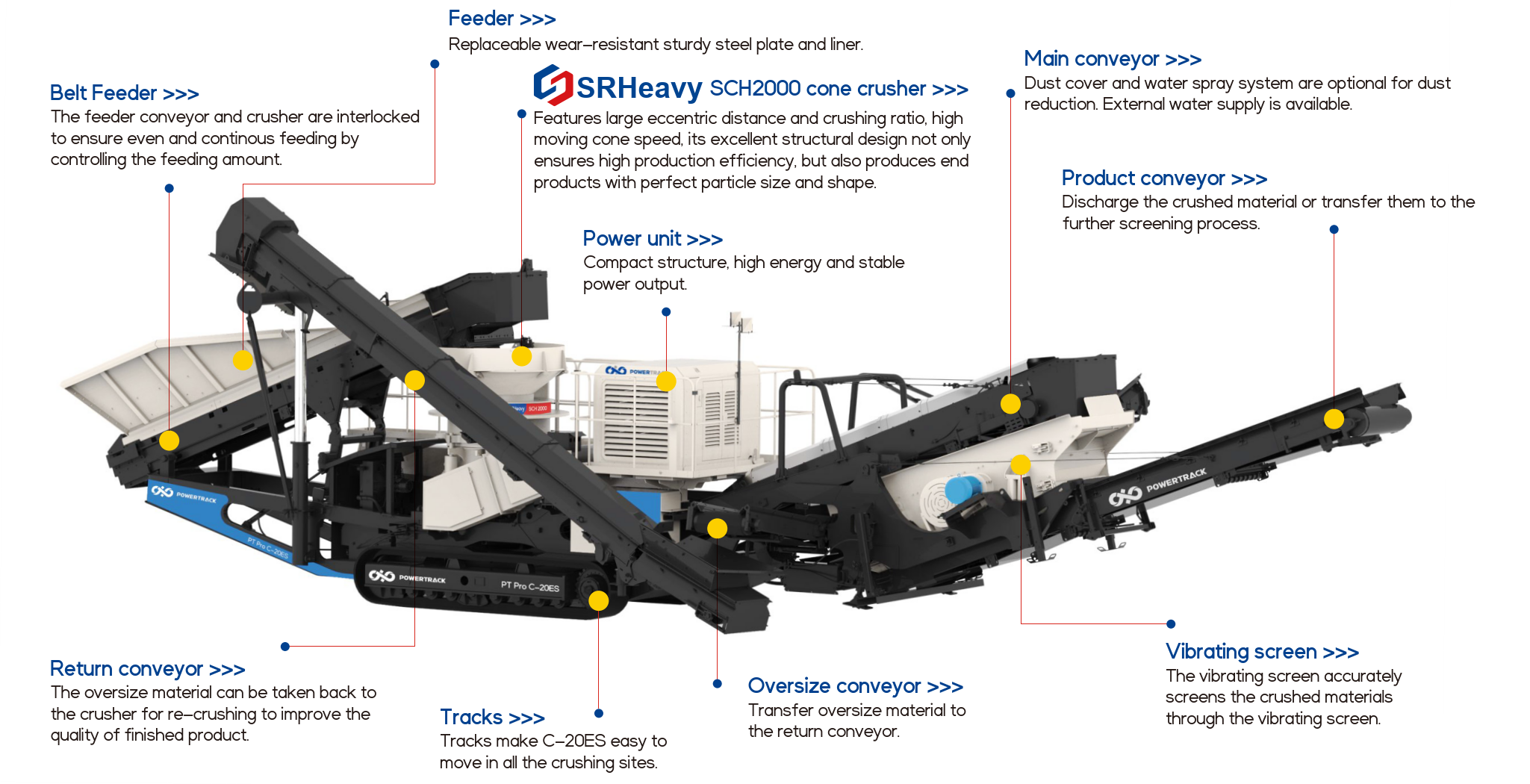

Machine features

Unique advantages

01
SRHeavy® SCH hydraulic cone crusher，large eccentric distance and crushing ratio, high production, perfect particle size.
02
Integrating crushing and double-deck screening, able to produce 2-3 kinds of finished materials.
03
The variable frequency feeding system with metal detection to protect the crusher from damage.
04
Plug-in electric driven brings energy saving and environmental protection.
05
Level sensor for automatic and optimized control of the feeding according to crusher cavity level.

Main parameters

Power type	Electric power
Capacity	Up to 250 t/h
Driving power	216 kW / 246 kW (include screen unit)
Power unit	Engine: Cummins
Transportation dimensions L x W x H	17,000 x 3,500 x 3,700 mm 17,500 x 3,500 x 3,700 mm (include screen unit)
Working dimensions L x W x H	16,000 x 4,000 x 4,600 mm 20,000 x 12,400 x 5,600 mm (include screen unit)
Weight	33,800 kg / 43,000 kg (include screen unit）
Maximum recommended feed size	185 mm
Crusher power	160 kW

Applications

Widely used in mining or construction materials fields. Suitable for crushing medium-high hardness ores and rocks, such as quartz stone, granite, basalt, iron ore, copper ore, etc.

Contractor

Aggregates

Construction
