Product brief

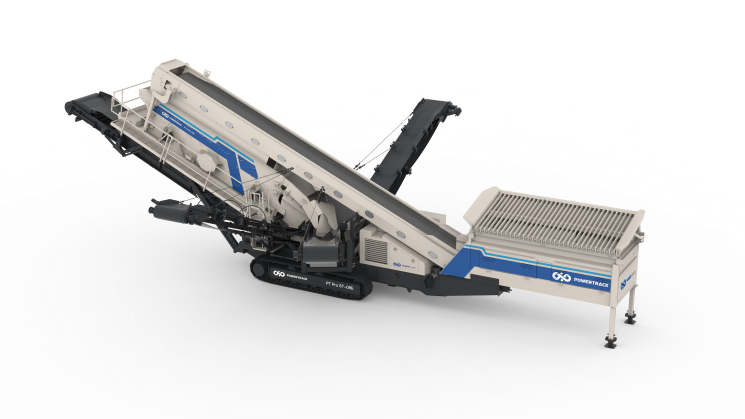

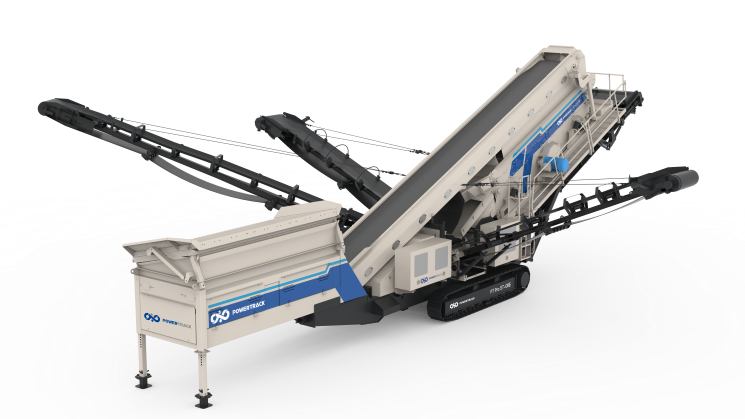

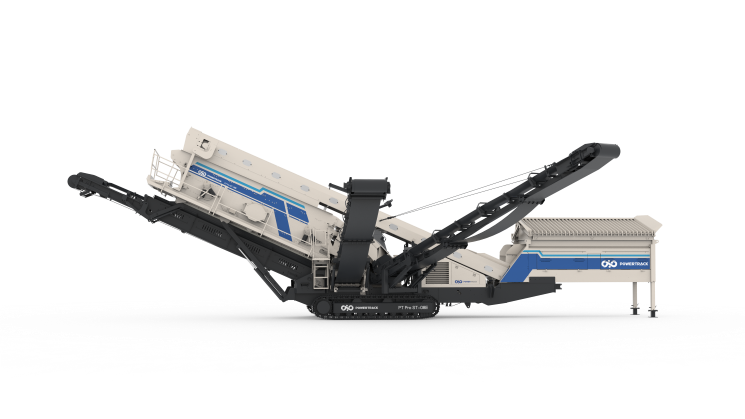

Powertrack PT Pro ST-08E features a convenient screen design. Depending on the properties of the materials being screened, a wide range of screen media can be selected to control the final product granularity, ensuring efficient material screening. All conveyors can be hydraulically folded for easy transportation.

Power：

60 kW
Capacity：

150-500 t/h
Weight：

32 t

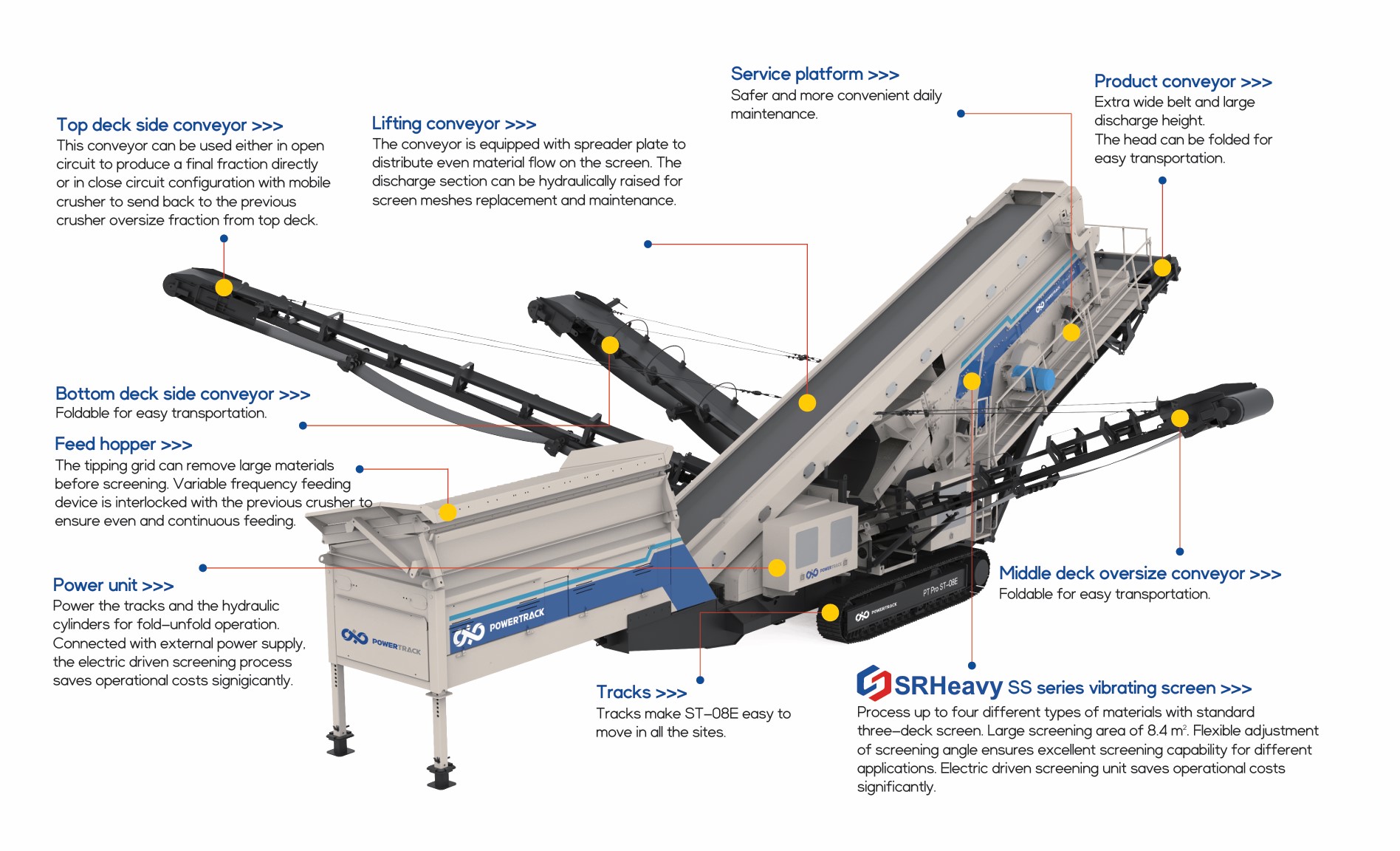

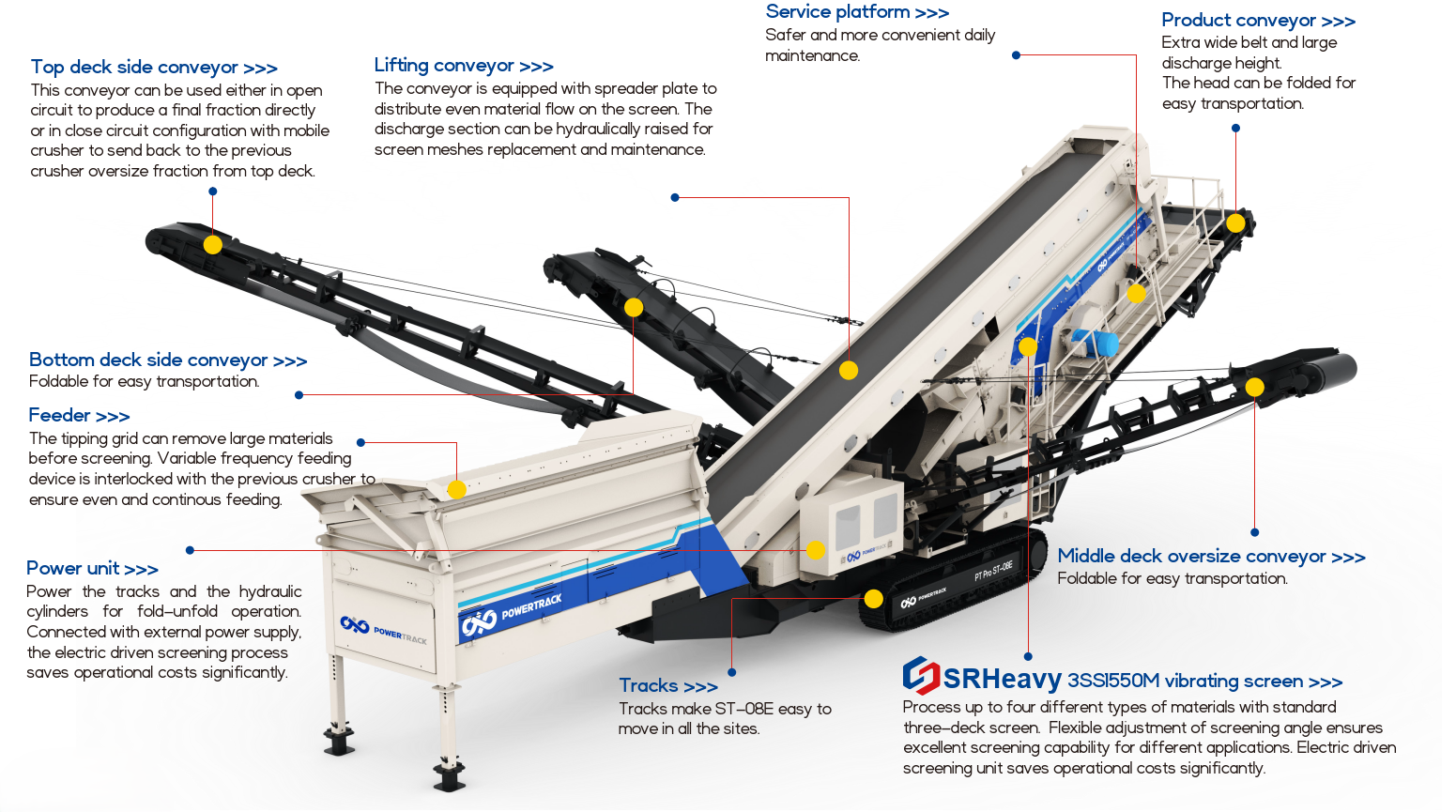

Machine features

Unique advantages

01
Three-deck screen with curved meshes design able to produce up to 4 end aggregates end products.
02
Premium components ensures excellent performance.
03
Feeder equips with tipping grid suits for more application.
04
The variable frequency feeding system suitable for various working conditions.
05
Plug-in electric driven brings energy saving, environmental protection and less maintenance.

Main parameters

Power type	Electric driven
Capacity	150-500 t/h
Driving power	60 kW
Power unit	Engine Cummins 110 kW
Transportation dimensions L x W x H	18,000 × 3,150 × 3,650 mm
Working dismensions L x W x H	18,800 × 15,900 × 6,200 mm
Weight	32,000 kg
Maximum recommended feed size	150 mm
Screen size	5,480×1,530 mm
Screen decks	3

Applications

It is widely used for screening crushed aggregates in fields such as mining, construction materials and waste recycling in conjunction with mobile crushing units as well as a stand-alone screening unit.

Construction

Aggregates

Construction waste recycling
