Product brief

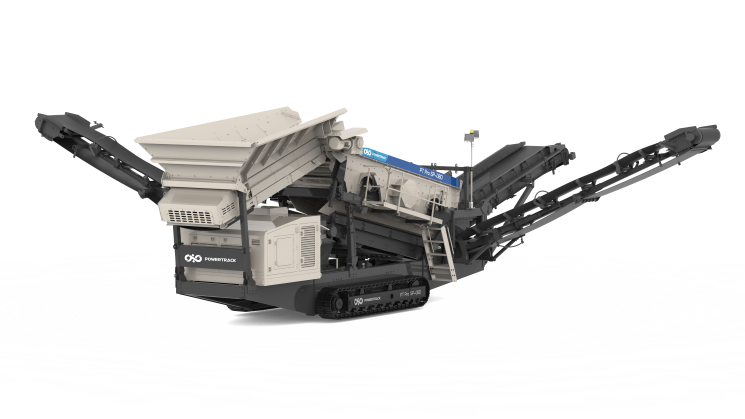

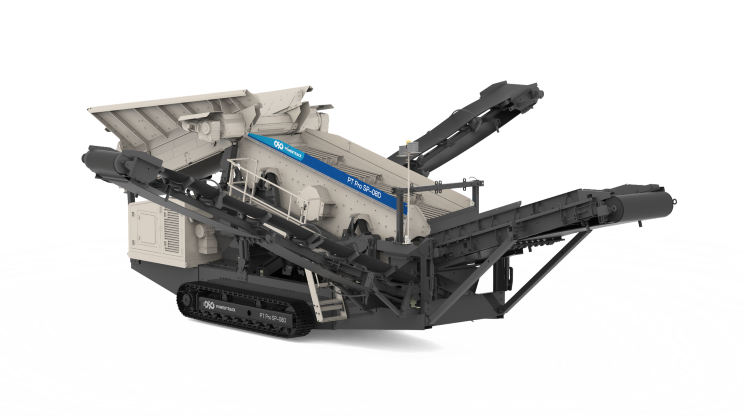

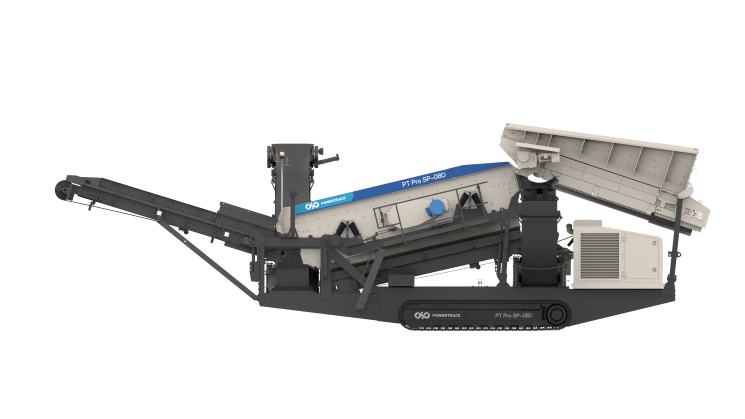

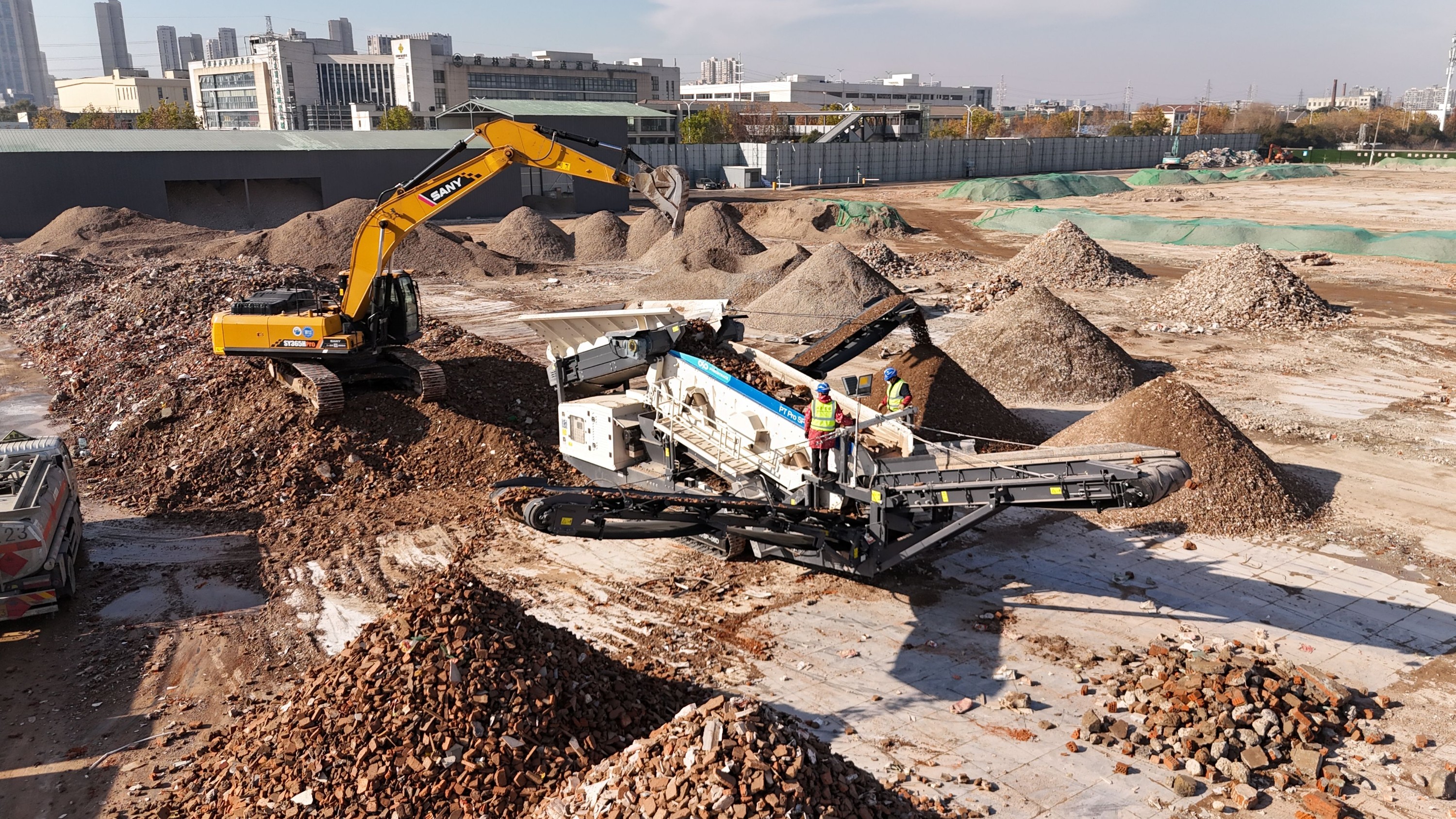

Powertrack PT Pro SP-08D is the heavy-duty scalping screening unit that can works alone or in conjunction with primary crushing unit. It is widely used in prescreening of feed with many fines like topsoil, earthwork, recycled waste, river gravel and slag, etc. and also effectively in scalping sticky recycling material. PT Pro SP-08D can be driven by dual power -external power grid or onboard genset, making it flexible to deal with different operating conditions.

Power：

62 kW
Capacity：

150-500 t/h
Weight：

32 t

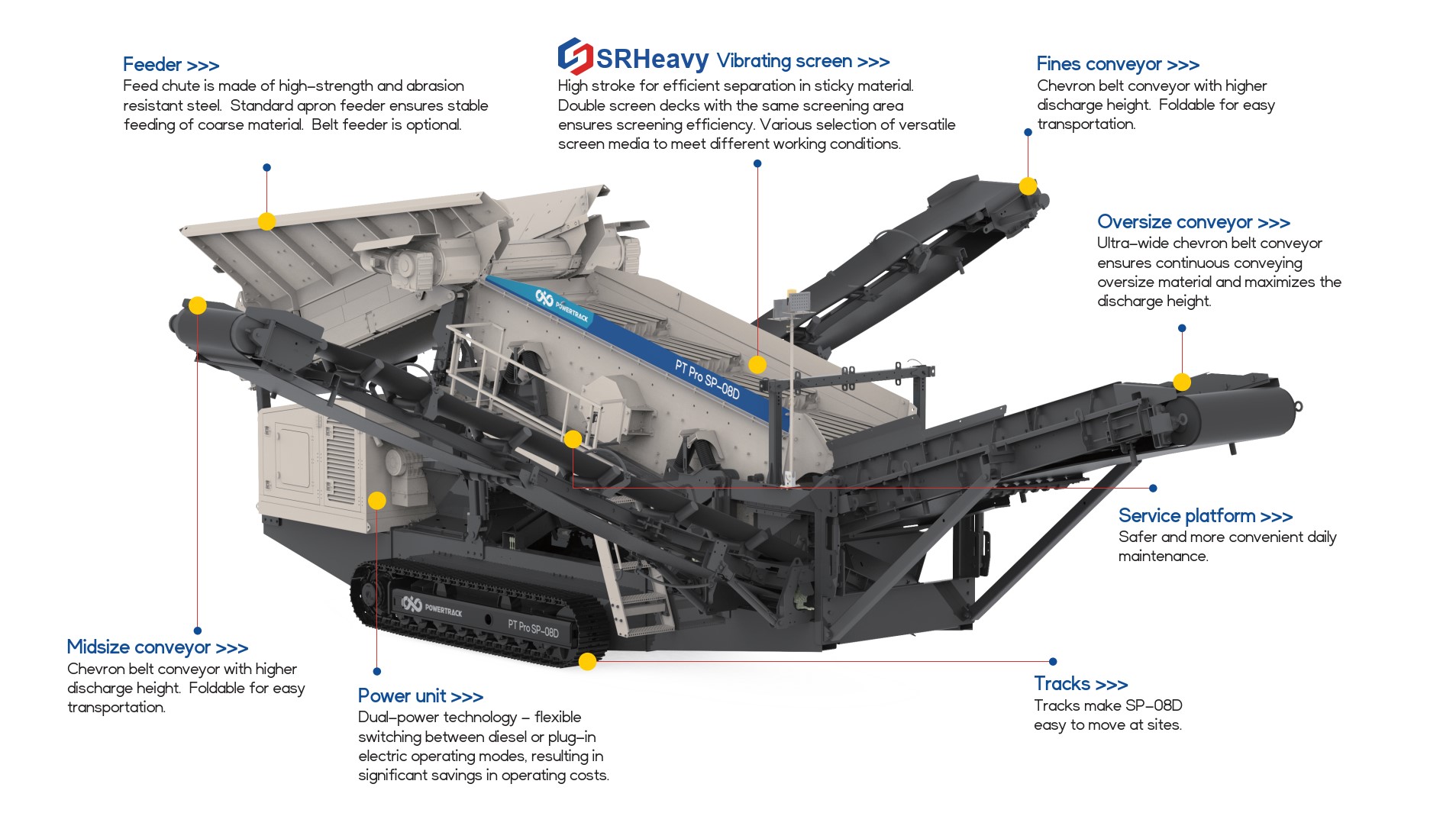

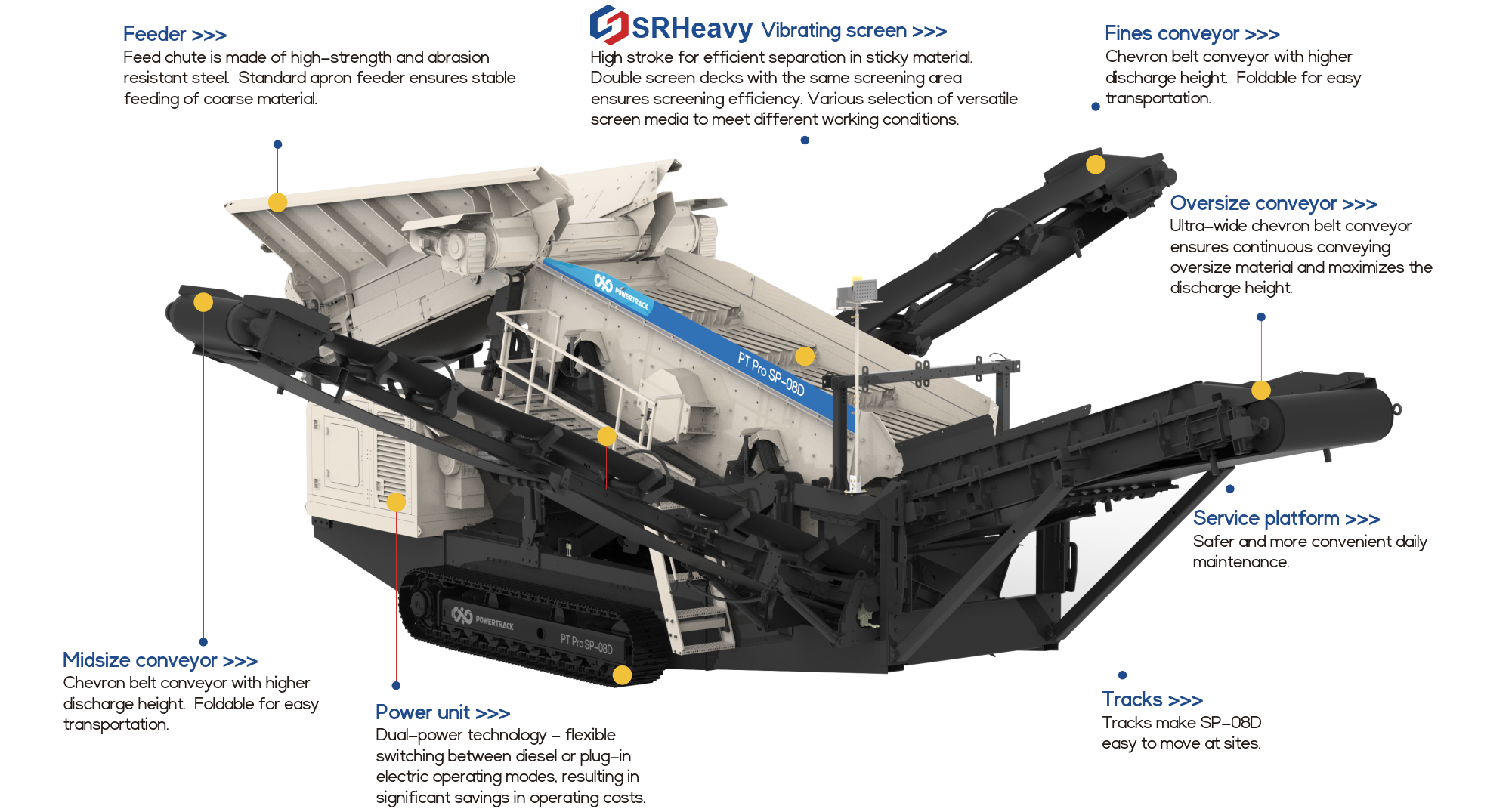

Machine features

Unique advantages

01
Compact size to meet international transportation standard.
02
Primary Scalping Screen technology with higher stroke for sticky material.
03
With chevron conveyor belt to support large lifting angle thus bigger stockpile.
04
Same screening area at both decks to provide higher screening efficiency.
05
Main product conveyor flexible and convenient to get posited to customize the plant application.
06
Dual power drive to switch power supply between diesel and electric.

Main parameters

Power type	Dual power
Capacity	150-500 t/h
Driving power	62 kW
Power unit	Engine Cummins 107kW Generator Stamford
Transportation dimensions L x W x H	15,850 × 3,450 × 3,750 mm
Working dismensions L x W x H	14,800 × 15,200 × 4,750 mm
Weight	32,000 kg
Maximum recommended feed size	600 mm (Apron feeder) / 400 mm (Belt feeder)
Screen size	4,870×1,520 mm
Screen decks	2
