Product brief

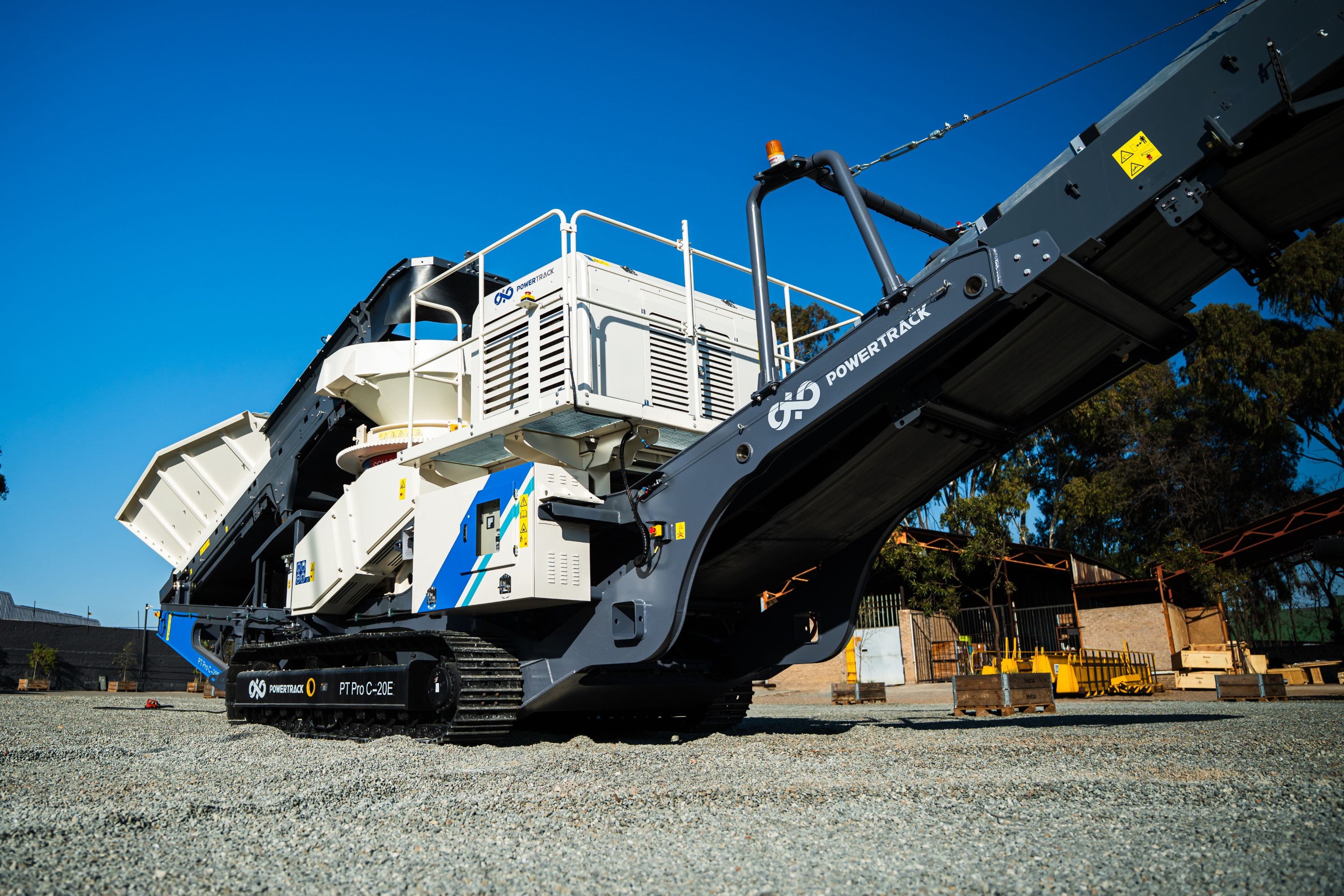

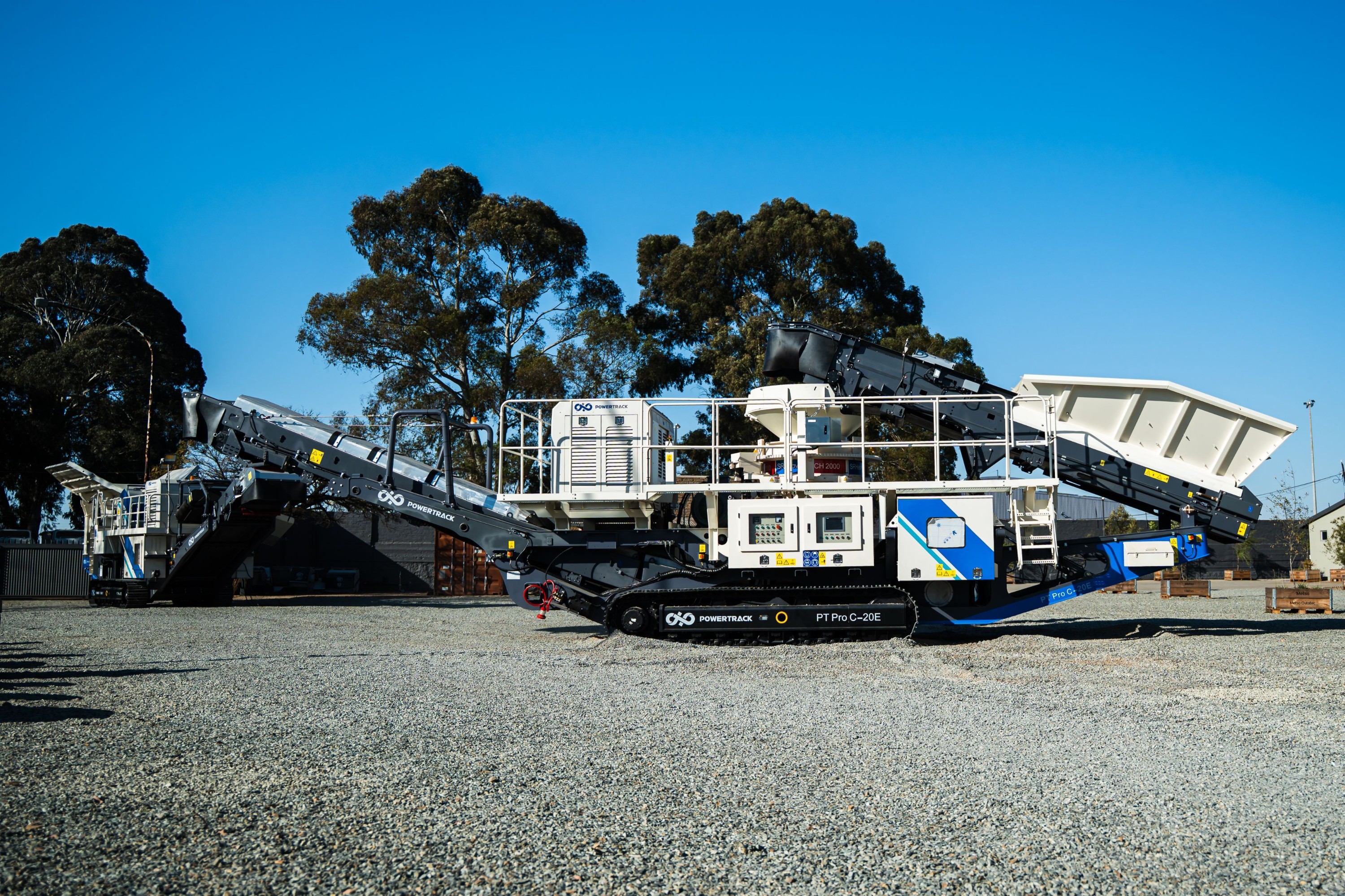

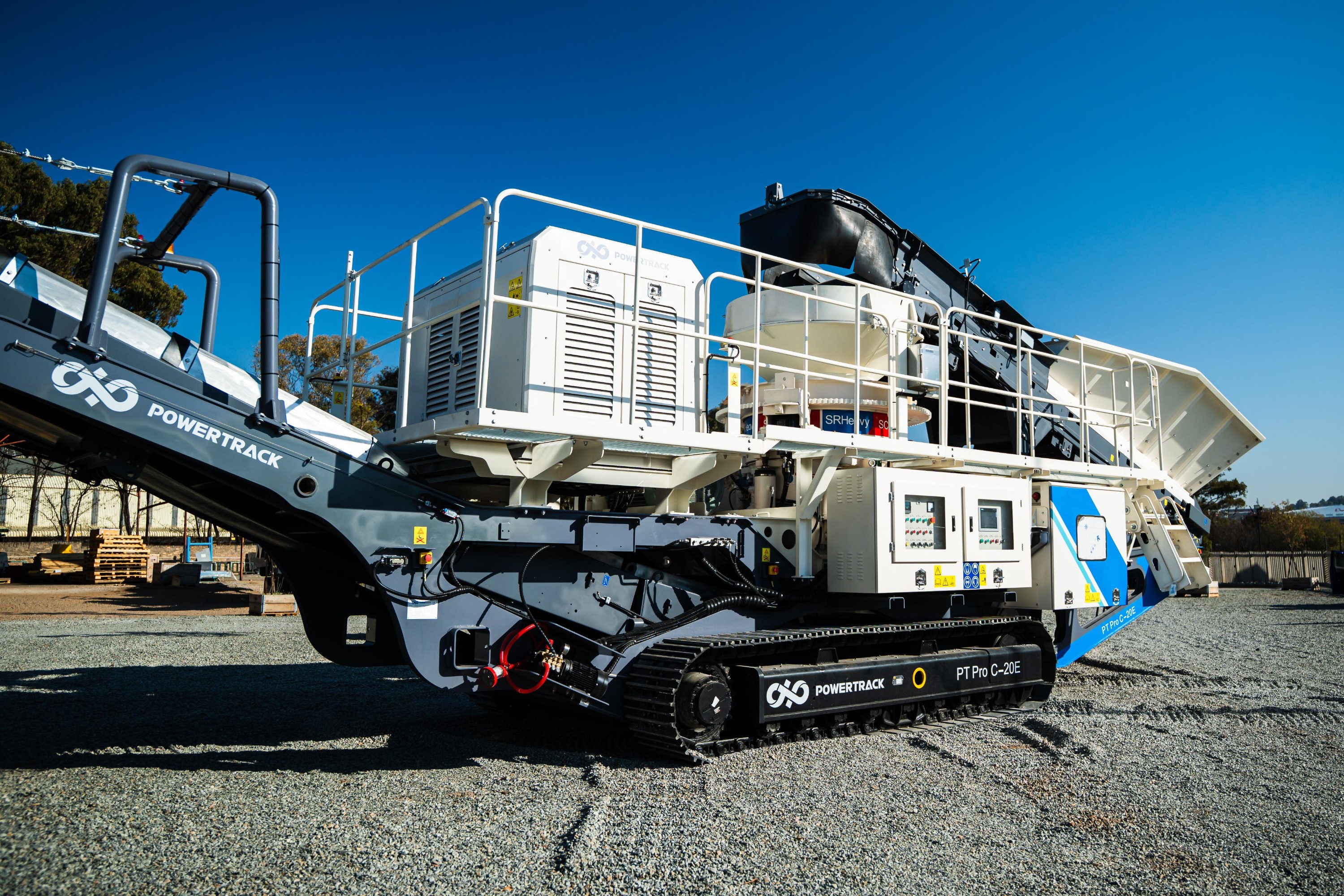

Powertrack PT Pro C-20E is suitable for secondary and tertiary crushing. It adopts the SCH2000 cone crusher that provides high production, high crushing ratio and high-quality aggregates. The proven design ensures machine reliability and is easy to maintain. Electric driven crushing system greatly reduces operational cost. Combined with Powertrack jaw crushing unit, it is an ideal choice for crushing medium to high hardness natural stone into aggregate.

Power：

216 kW
Capacity：

Up to 250 t/h
Weight：

33.8 t

Send inquiry

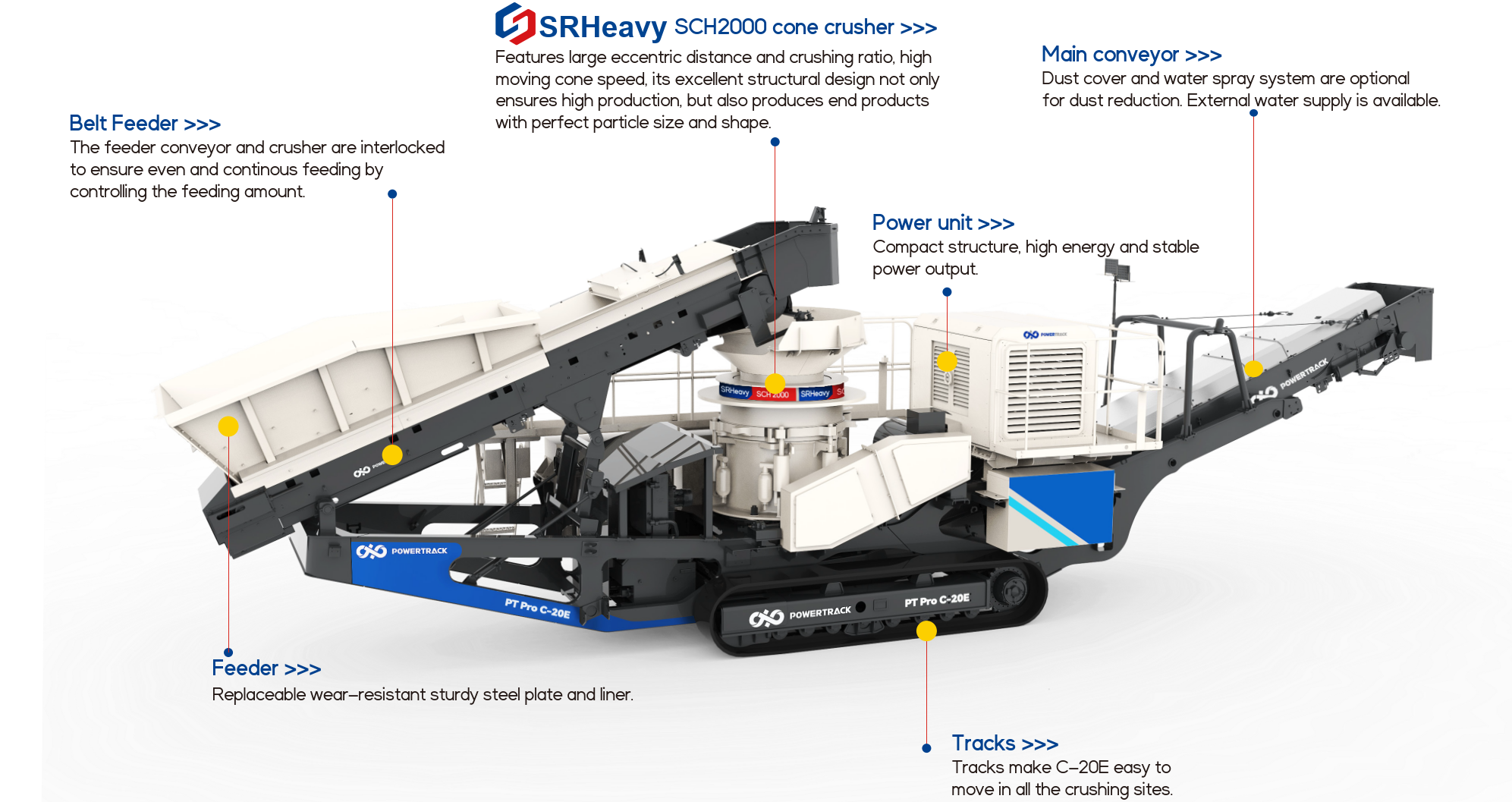

Machine features

Unique advantages

01
SRHeavy® SCH hydraulic cone crusher，large eccentric distance and crushing ratio, high production, perfect particle size.
02
Integrating crushing and double-deck screening, able to produce 2-3 kinds of finished materials.
03
The variable frequency feeding system with metal detection to protect the crusher from damage.
04
Plug-in electric driven brings energy saving and environmental protection.
05
Level sensor for automatic and optimized control of the feeding according to crusher cavity level.

Main parameters

Power type	Electric power
Capacity	Up to 250 t/h
Driving power	216 kW
Power unit	Engine: Cummins
Transportation dimensions L x W x H	17,000 x 3,500 x 3,700 mm
Working dimensions L x W x H	16,000 x 4,000 x 4,600 mm
Weight	33,800 kg
Maximum recommended feed size	185 mm
Crusher power	160 kW

Applications

Widely used in mining or construction materials fields. Suitable for crushing medium-high hardness ores and rocks, such as quartz stone, granite, basalt, iron ore, copper ore, etc.

Construction

Aggregates

Contractor
