Mobile jaw crushing range
PT Pro J-11D
Suitable for primary crushing of all medium to high abrasive materials
Product brief
PT Pro J-11D is designed for aggregate production, primary crushing of natural materials and recycled materials. Its robust and reliable structure ensures excellent operational performance even under harsh conditions. The core advantage is its onboard dual-power (diesel/plug-in) system, which allows for operation independent of grid power supply, significantly expanding the scope of applicable scenarios.
  • Power:
    143 kW
  • Capacity:
    150 - 500 t/h
  • Weight:
    50 t

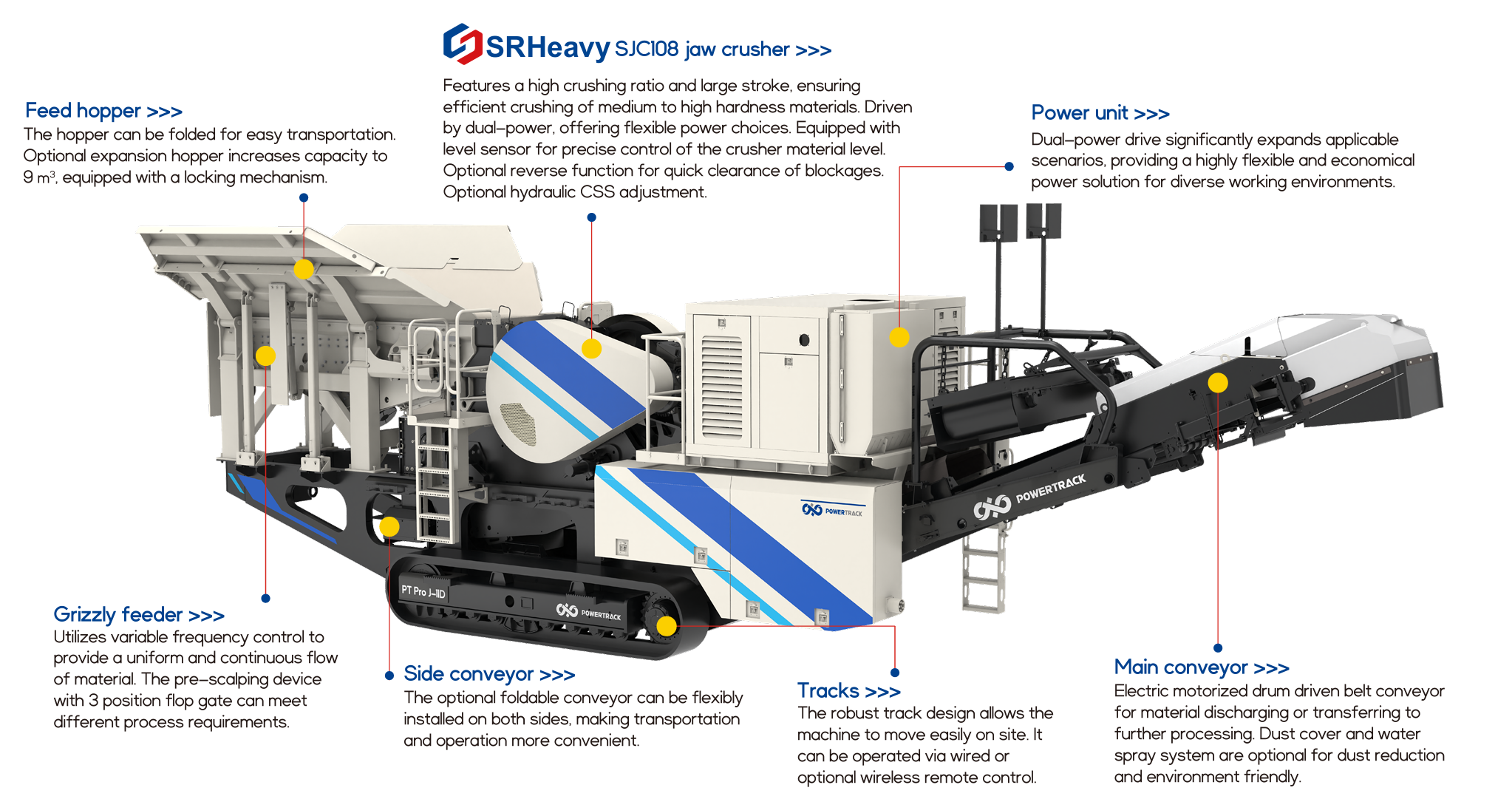

Machine features

Unique advantages
  • 01
    Compact size with integrated feeding, pre-scalping and crushing units.
  • 02
    Dual power driven, enable flexibly switching between diesel generator and plug-in electricity.
  • 03
    Variable frequency feeder and level sensor for optimized control of the feeding according to crusher cavity level.
  • 04
    Optional reverse function for quick clearance of blockages.
  • 05
    Unique electric control to reduce the starting current and improve lifetime of VFD.
Main parameters
Power typeDual power
Capacity150 - 500 t/h
Driving power143 kW
Power unit

Engine: Cummins

Generator: Mecc Alte

Transportation dimensions  L x W x H15 350 × 3 150 × 3 700 mm
Working dimensions  L x W x H15 400 × 6 000 × 4 650 mm
Weight50 000 kg
Feed opening1 060 × 700 mm
Maximum recommended feed size560 mm
Crushing power110 kW


Applications
Widely used in the fields of mining and aggregates. Especially suitable for primary crushing of high hardness of natural stone, as well as reycling materials
Aggregates
Construction
Contractor
